Removal - AWD

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
2. Remove the right front wheel. Refer to REMOVAL AND INSTALLATION .
3. Remove the engine belly pan. Refer to BELLY PAN, ENGINE, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

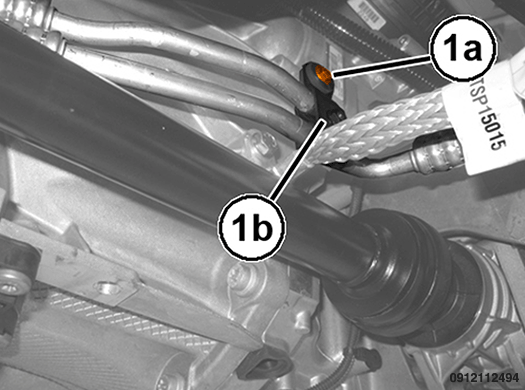

4. Remove the bolt (1a) and release the intermediate bracket (1b) retaining the transmission fluid supply and return pipes.

   Courtesy of CHRYSLER GROUP, LLC

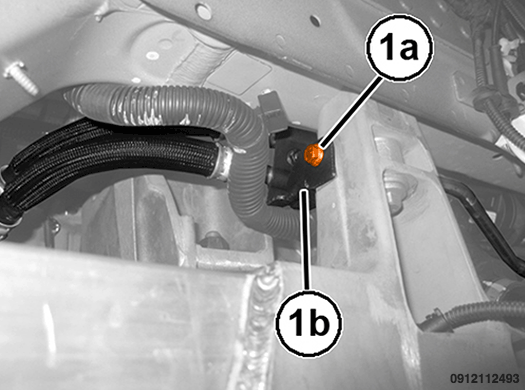

5. Remove the bolt (1a) and release the intermediate bracket (1b) retaining the transmission fluid supply and return pipes.
6. Place a suitable hydraulic jack under the oil pan and support the engine to take the weight off of the engine mount.

   Courtesy of CHRYSLER GROUP, LLC

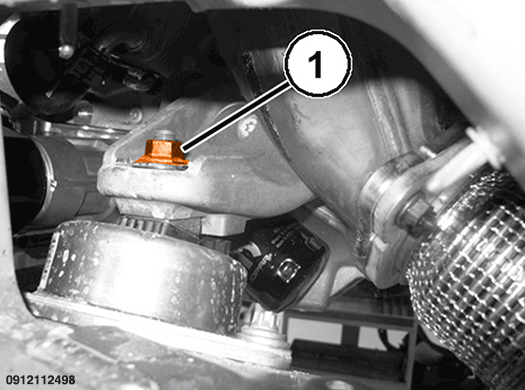

7. Using the (special tool #2030300090, Adapter, Engine Support Screw), remove the nut (1) securing the left engine mount bracket to the engine mount insulator.

   Courtesy of CHRYSLER GROUP, LLC

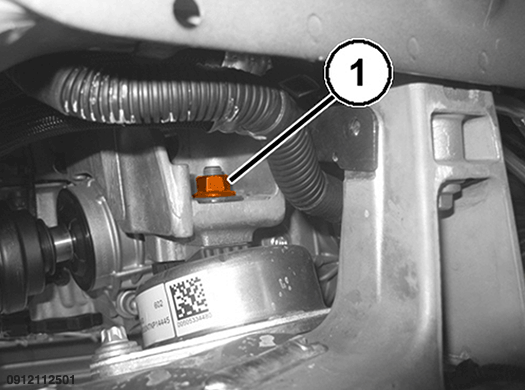

8. Using the (special tool #2030300090, Adapter, Engine Support Screw), remove the nut (1) securing the right engine mount bracket to the engine mount insulator.

   Courtesy of CHRYSLER GROUP, LLC

9. Using the hydraulic jack lift the engine about 15 mm.

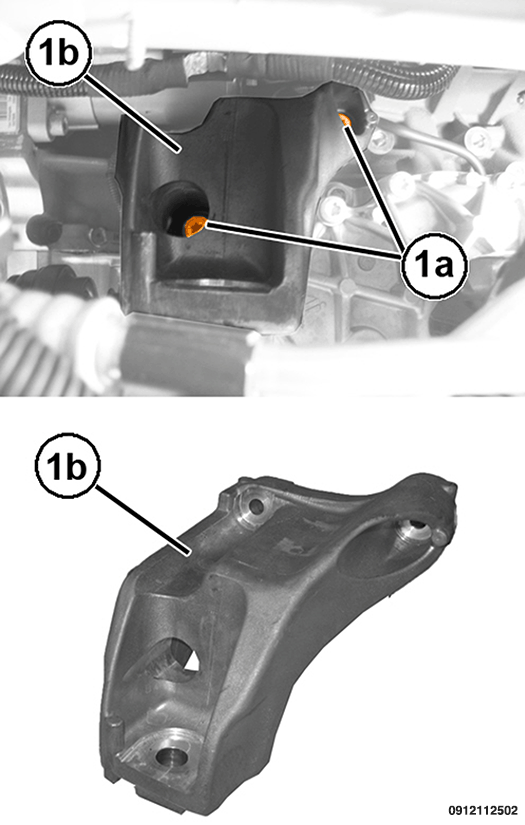

10. Remove and DISCARD  the bolts (1a). Remove the right engine mount bracket (1b).

Courtesy of CHRYSLER GROUP, LLC

INSTALLATION

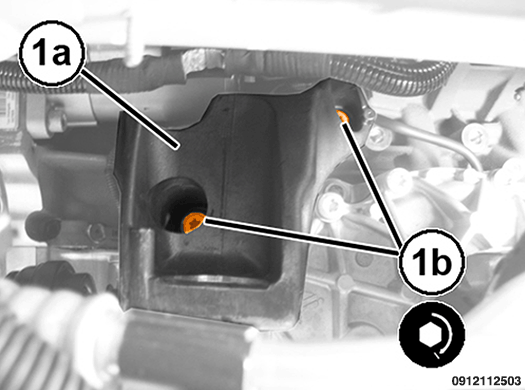

1. Install the right engine mount bracket (1a) and tighten the NEW  bolts (1b) to the proper specification Refer to TORQUE SPECIFICATIONS  .

   Courtesy of CHRYSLER GROUP, LLC

2. Operate the hydraulic jack to lower the engine.

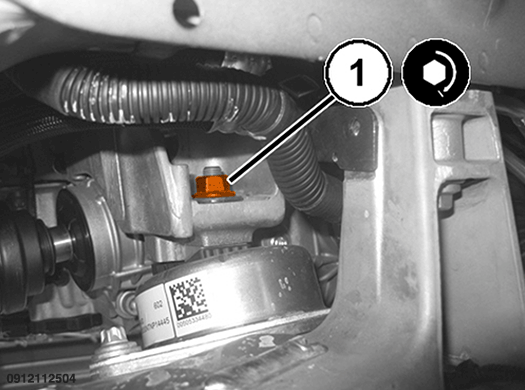

3. Using the (special tool #2030300090, Adapter, Engine Support Screw), tighten the right engine mount bracket to the engine mount insulator nut (1) to the proper specification Refer to TORQUE SPECIFICATIONS  .

   Courtesy of CHRYSLER GROUP, LLC

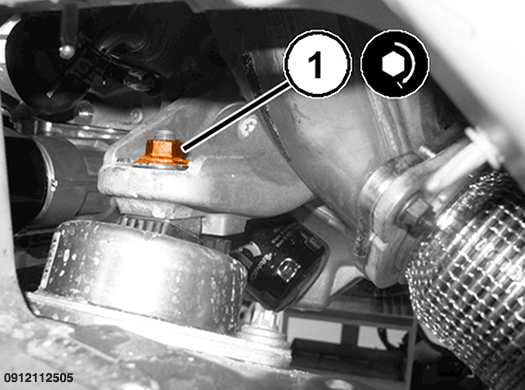

4. Using the (special tool #2030300090, Adapter, Engine Support Screw), tighten the left engine mount bracket to the engine mount insulator nut (1) to the proper specification Refer to TORQUE SPECIFICATIONS  .
5. Remove the hydraulic jack.
6. Tighten the attaching bolts of the intermediate brackets retaining the transmission fluid supply and return pipes.
7. Install the engine belly pan. Refer to BELLY PAN, ENGINE, REMOVAL AND INSTALLATION .
8. Install the right front wheel. Refer to REMOVAL AND INSTALLATION .
9. Remove the support and lower the vehicle.
