Removal - Upper

1. Remove the lower rear engine/transmission mount bracket RWD. Refer to BRACKET, ENGINE MOUNT, REAR, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

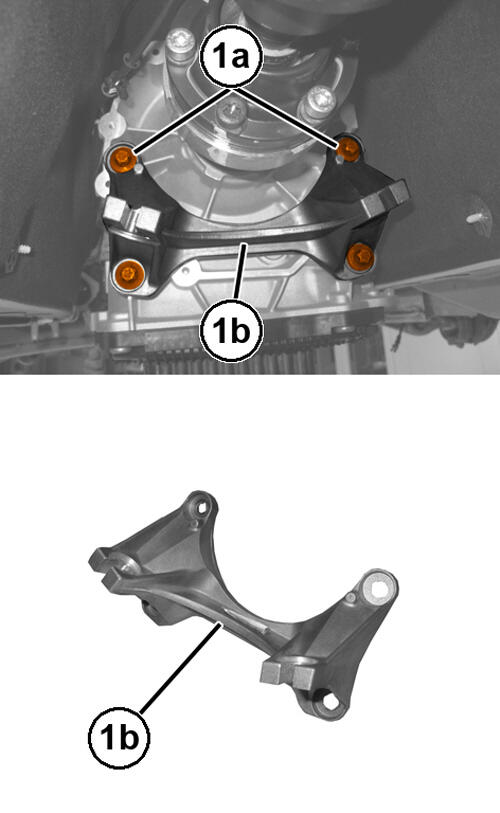

2. Remove the bolts (1a) and remove the upper bracket (1b).

Courtesy of CHRYSLER GROUP, LLC

INSTALLATION

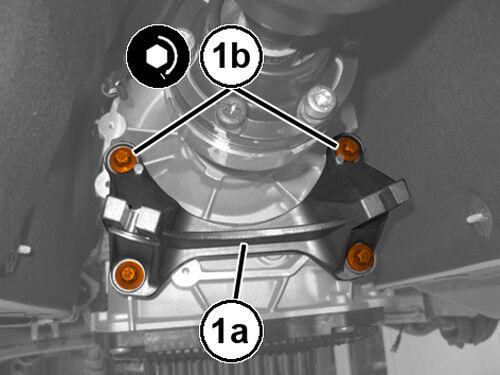

1. Install the upper bracket (1a) and tighten the bolts (1b) to the proper specification Refer to TORQUE SPECIFICATIONS  .
2. Install the lower rear engine/transmission mount bracket RWD. Refer to BRACKET, ENGINE MOUNT, REAR, REMOVAL AND INSTALLATION .
