Removal - Lower - AWD

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .

   Courtesy of CHRYSLER GROUP, LLC

2. Position a suitable hydraulic jack under the transmission.

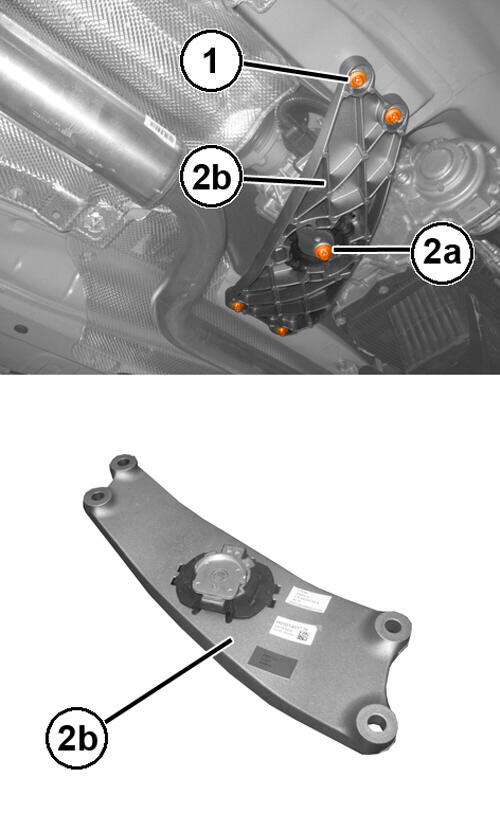

3. Remove and DISCARD  the bolts (1) attaching the bracket to the body.
4. Remove the bolt (2a) and remove the bracket (2b) with the insulator attached.

Courtesy of CHRYSLER GROUP, LLC

INSTALLATION

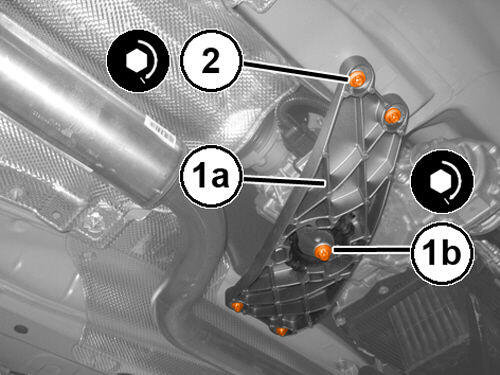

1. Install the rear bracket assembly (1a) and tighten the NEW  bracket to the body bolts (2) to the proper specification Refer to TORQUE SPECIFICATIONS  .
2. Tighten the bolt (1b) to the proper specification Refer to TORQUE SPECIFICATIONS  .
3. Remove the hydraulic jack from underneath the transmission.
4. Remove the support and lower the vehicle.
