Removal - RWD

1. Remove the engine oil filter. Refer to FILTER, ENGINE OIL, REMOVAL AND INSTALLATION .
2. Remove the left engine mount bracket. Refer to BRACKET, ENGINE MOUNT, LEFT, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

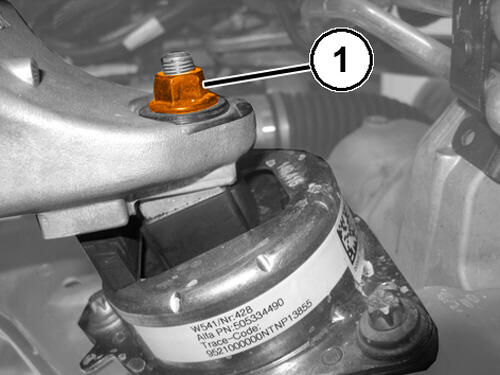

3. Remove the nut (1) securing the insulator to the left engine mount bracket.

   Courtesy of CHRYSLER GROUP, LLC

4. Using the jack, lift the engine about 15 mm.

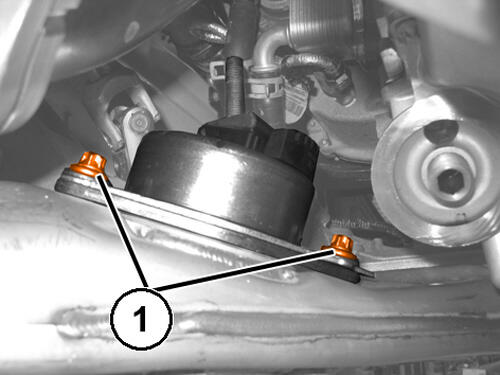

5. Remove the bolts (1) attaching the insulator to the crossmember.

   Courtesy of CHRYSLER GROUP, LLC

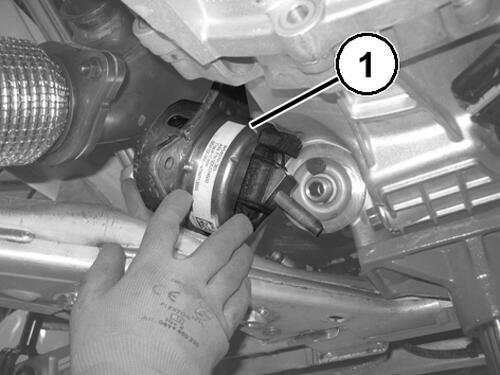

6. Remove the insulator (1).

Courtesy of CHRYSLER GROUP, LLC

INSTALLATION

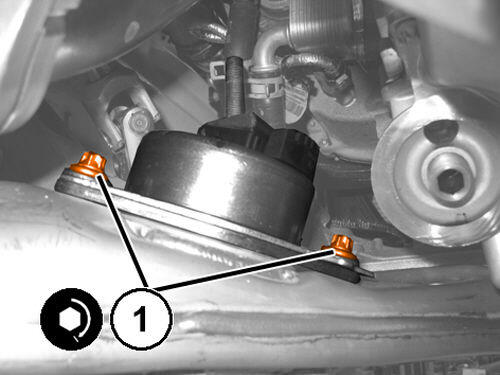

1. Install the insulator and tighten the bolts (1) to the proper specification Refer to TORQUE SPECIFICATIONS  .

   Courtesy of CHRYSLER GROUP, LLC

2. Lower the engine.

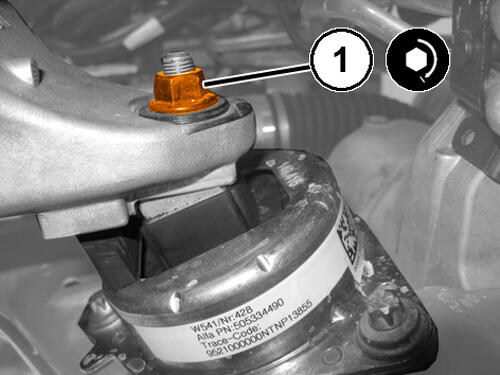

3. Install the insulator to bracket nut (1) and tighten to the proper specification Refer to TORQUE SPECIFICATIONS  .
4. Install the left engine mount bracket. Refer to BRACKET, ENGINE MOUNT, LEFT, REMOVAL AND INSTALLATION .
5. Install the engine oil filter and fill the engine crankcase with the proper oil to the correct level. Refer to FILTER, ENGINE OIL, REMOVAL AND INSTALLATION .
