Removal - AWD

1. Remove the engine oil filter. Refer to FILTER, ENGINE OIL, REMOVAL AND INSTALLATION .
2. Remove the left engine mount bracket. Refer to BRACKET, ENGINE MOUNT, LEFT, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

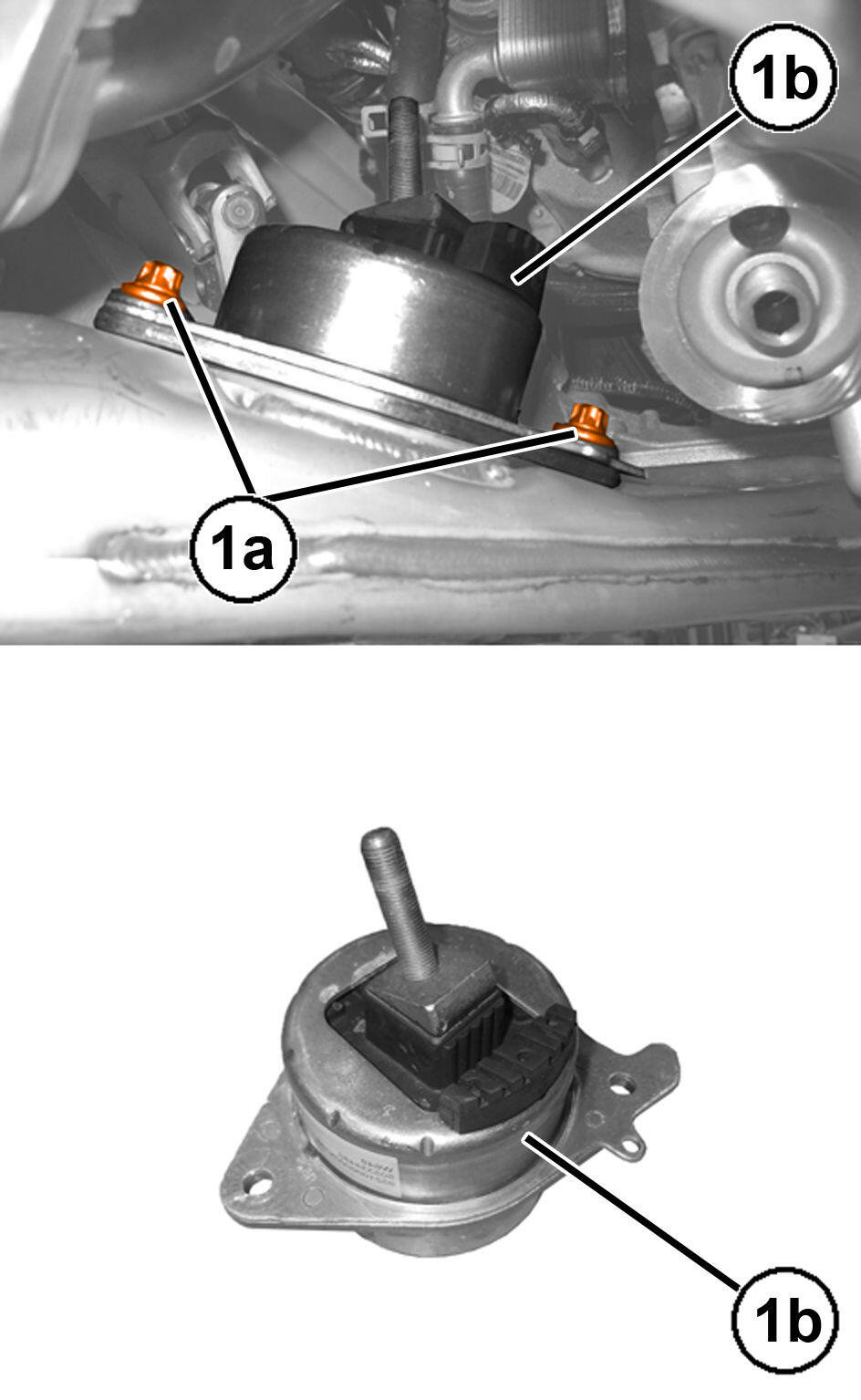

3. Remove the bolts (1a) attaching the insulator (1b) to the crossmember.
4. Remove the insulator (1b).

Courtesy of CHRYSLER GROUP, LLC

INSTALLATION

1. Install the insulator and tighten the bolts (1) to the proper specification Refer to TORQUE SPECIFICATIONS  .
2. Install the left engine mount bracket. Refer to BRACKET, ENGINE MOUNT, LEFT, REMOVAL AND INSTALLATION .
3. Install the engine oil filter and fill the engine crankcase with the proper oil to the correct level. Refer to FILTER, ENGINE OIL, REMOVAL AND INSTALLATION .
