Removal - RWD

1. Remove the right engine mount bracket. Refer to BRACKET, ENGINE MOUNT, RIGHT, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

2. Remove the bolts (1a) and remove the insulator (1b).

Courtesy of CHRYSLER GROUP, LLC

INSTALLATION

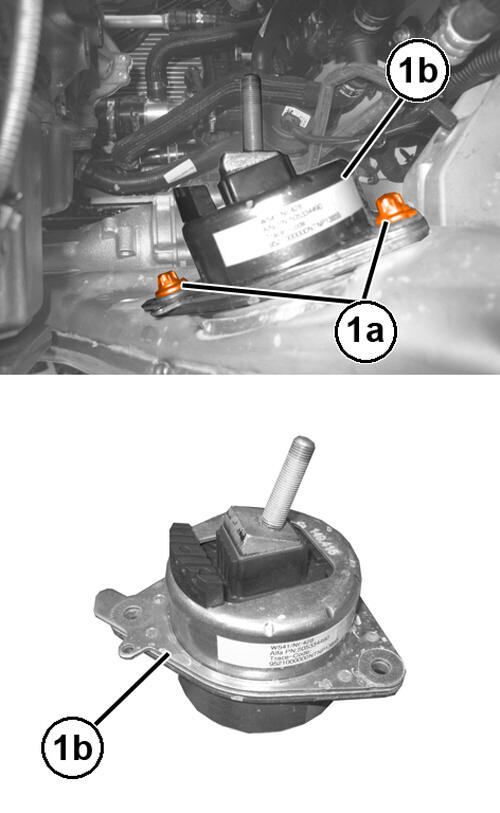

1. Install the insulator (1a) and tighten the bolts (1b) to the proper specification Refer to TORQUE SPECIFICATIONS  .
2. Install the right engine mount bracket. Refer to BRACKET, ENGINE MOUNT, RIGHT, REMOVAL AND INSTALLATION .
