Engine Oil Level Check

REAR WHEEL DRIVE (RWD)

NOTE:

The best time to check the engine oil level is after the engine is at operating temperature. Allow the engine to be shut off for at least 5 minutes before checking the oil level. Checking the oil level while the vehicle is on level ground will improve the accuracy of the oil level reading.

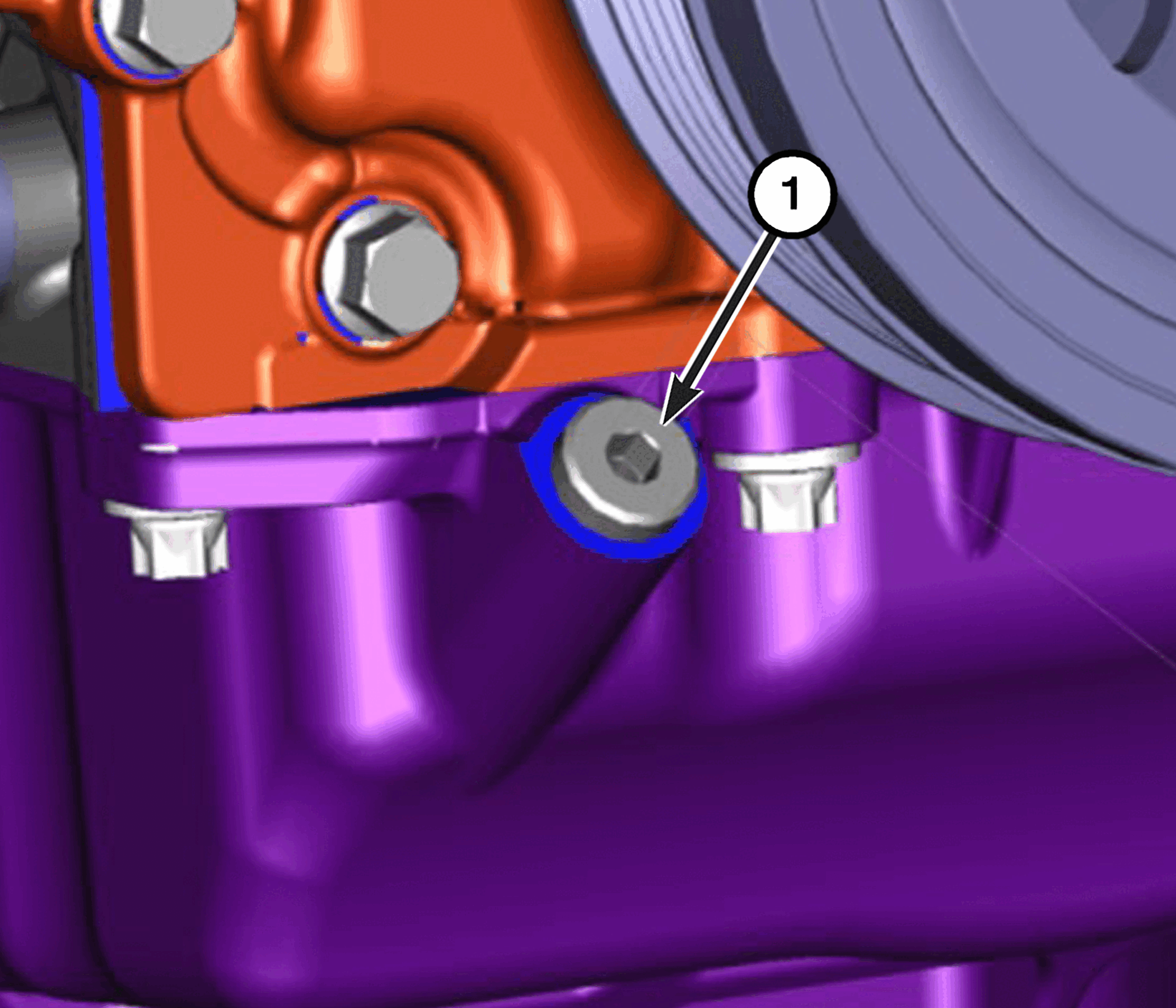

GC0195893Courtesy of CHRYSLER GROUP, LLC
  1. Remove the plug (1) from the oil level check port in the front of the oil pan.

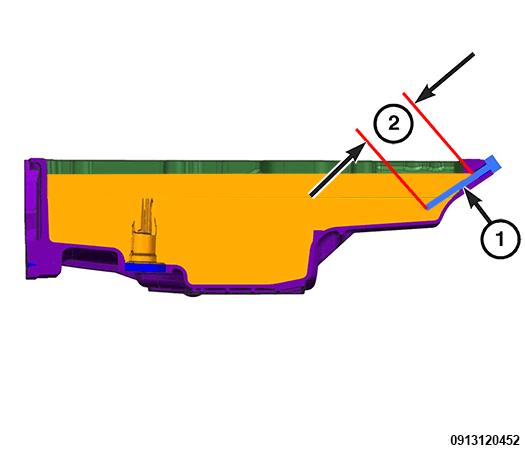

    GC0197162Courtesy of CHRYSLER GROUP, LLC
  2. Insert the (special tool #2025600210, Dipstick) (1) into the oil level check port until seated squarely on the port opening. Remove the tool and note the oil level (2).
    REAR WHEEL DRIVE (RWD)

    Oil Level Rear Wheel Drive (RWD)
    Minimum Level mm (inches) 13.7 mm +/- 3mm (0.54 inches +/- 0.12 inches)
    Maximum Level mm (inches) 50.0 mm +/- 3mm (1.97 inches +/- 0.12 inches)
  3. If the oil level is close to or below the minimum oil level, add the recommend engine oil until it reaches a level between the minimum and maximum levels. Refer to CAPACITIES AND RECOMMENDED FLUIDS, SPECIFICATIONS . If the oil level is at or above the maximum oil level, it is required to bring the oil level between the minimum and maximum oil level rage.
    NOTE:

    After checking the engine oil, always check that the level corresponds to the indication on the instrument panel display.

  4. Install and tighten the oil level check port plug.

ALL WHEEL DRIVE (AWD)

NOTE:

The best time to check the engine oil level is after the engine is at operating temperature. Allow the engine to be shut off for at least 5 minutes before checking the oil level. Checking the oil level while the vehicle is on level ground will improve the accuracy of the oil level reading.

GC0195893Courtesy of CHRYSLER GROUP, LLC
  1. Remove the plug (1) from the oil level check port in the front of the oil pan.

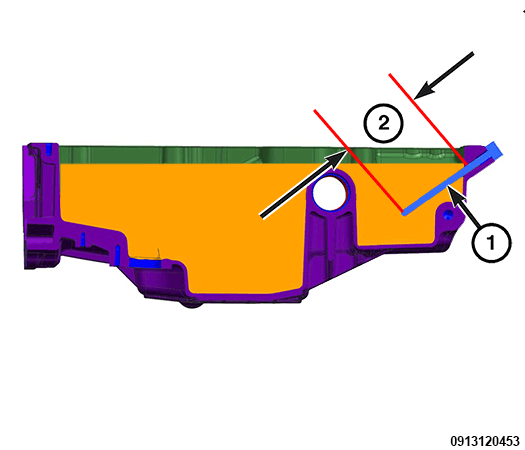

    GC0196419Courtesy of CHRYSLER GROUP, LLC
  2. Insert the (special tool #2025600210, Dipstick) (1) into the oil level check port until seated squarely on the port opening. Remove the tool and note the oil level (2).
    ALL WHEEL DRIVE (AWD)

    Oil Level All Wheel Drive (AWD)
    Minimum Level mm (inches) 12.5 mm +/- 3mm (0.49 inches +/- 0.12 inches)
    Maximum Level mm (inches) 48.7 mm +/- 3mm (1.92 inches +/- 0.12 inches)
  3. If the oil level is close to or below the minimum oil level, add the recommend engine oil until it reaches a level between the minimum and maximum levels. Refer to CAPACITIES AND RECOMMENDED FLUIDS, SPECIFICATIONS . If the oil level is at or above the maximum oil level, it is required to bring the oil level between the minimum and maximum oil level rage.
    NOTE:

    After checking the engine oil, always check that the level corresponds to the indication on the instrument panel display.

  4. Install and tighten the oil level check port plug.
