Engine Oil Level Sensor

REMOVAL

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
2. Disconnect the negative battery cable.
3. Remove the engine belly pan. Refer to BELLY PAN, ENGINE, REMOVAL AND INSTALLATION .
4. Remove the oil filter and drain the engine oil. Refer to FILTER, ENGINE OIL, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

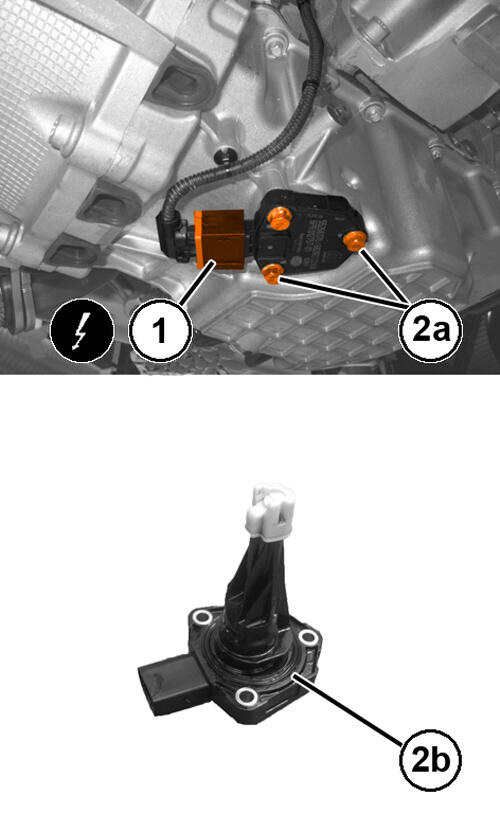

5. Disconnect the engine oil level sensor electrical connection (1).
6. Remove the bolts (2a) and remove the engine oil level sensor (2b).

INSTALLATION

1. Install the engine oil level sensor and tighten the bolts.
2. Connect the engine oil level sensor electrical connection.
3. Install the oil filter and fill the engine crankcase with the proper oil to the correct level. Refer to CAPACITIES AND RECOMMENDED FLUIDS, SPECIFICATIONS .
4. Install the engine belly pan. Refer to BELLY PAN, ENGINE, REMOVAL AND INSTALLATION .
5. Connect the negative battery cable.
6. Using a scan tool, go to PCM Misc Functions and run the "Oil change and/or level sensor replacement" routine.
7. Remove the support and lower the vehicle.
