OIL PAN

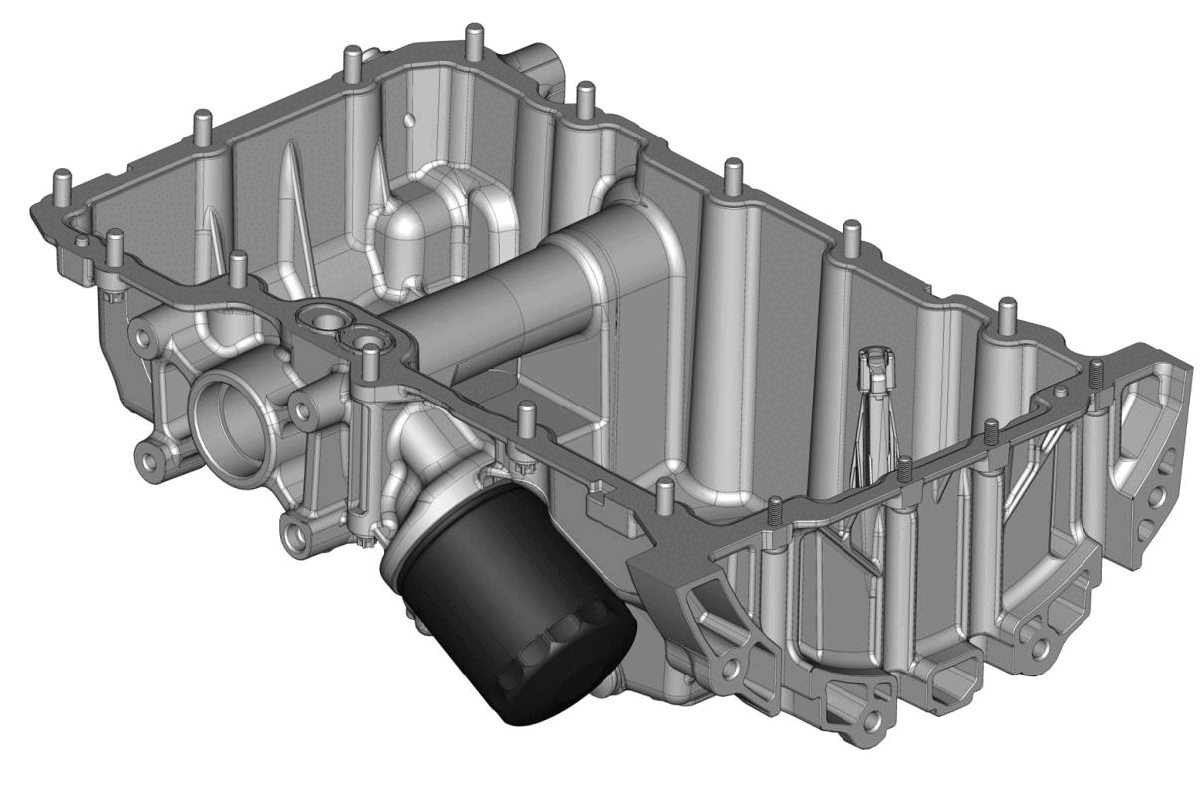

The oil pan is fastened to the engine block by 17 screws. Sealant is used to ensure a seal along the oil pan-engine block gasket surface.

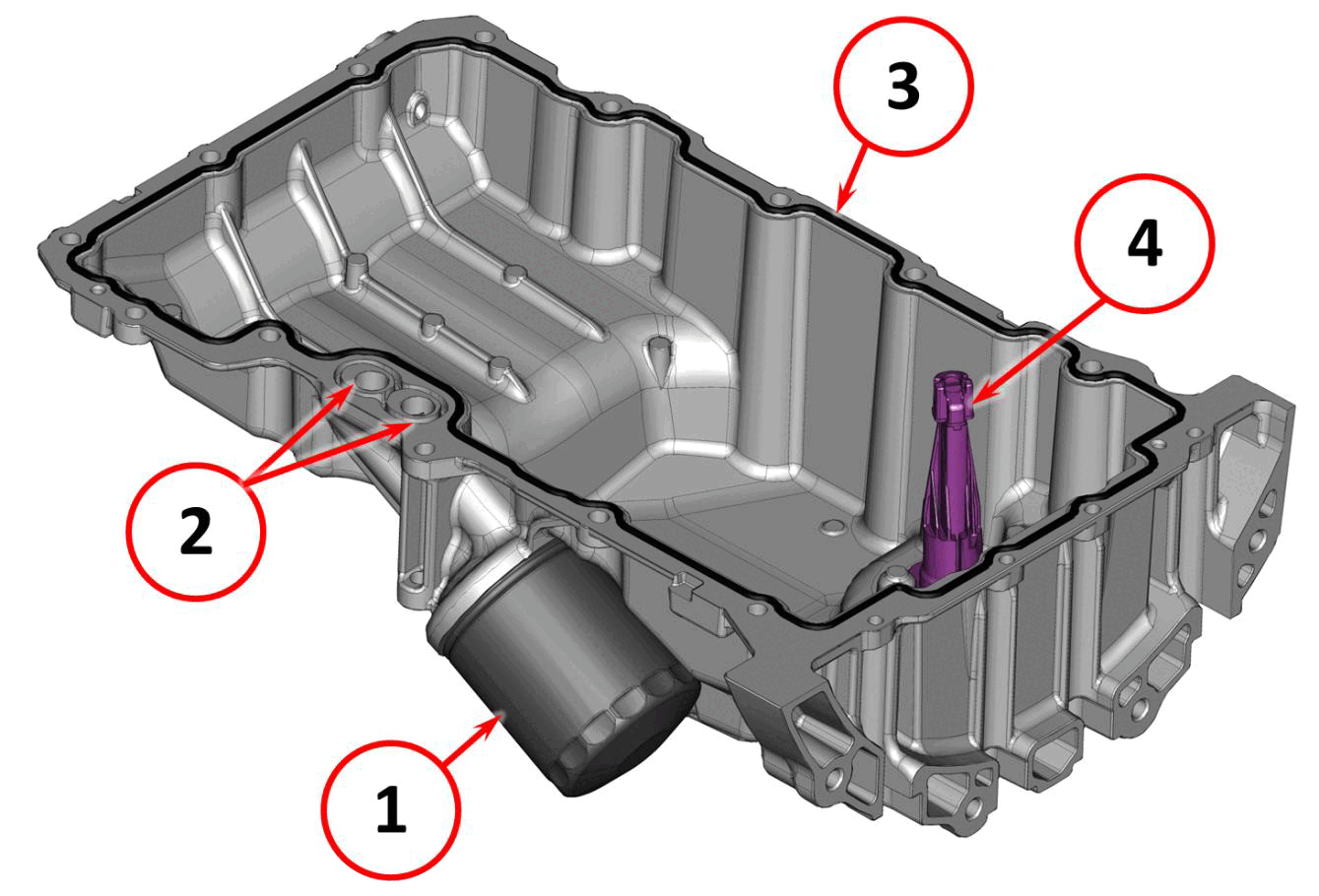

The oil pan has mounting surfaces and related cavities for the following components:

1. Oil filter
2. Oil inlet and outlet channels to the filter
3. Sealant
4. Oil level and temperature sensors

Courtesy of CHRYSLER GROUP, LLC

In the AWD version, the oil pan has mountings for the front axle and pass-through for the intermediate drive shaft.
