Idling Engine Oil Vapor Inlet Line

REMOVAL

  1. Remove the top engine cover and side engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .

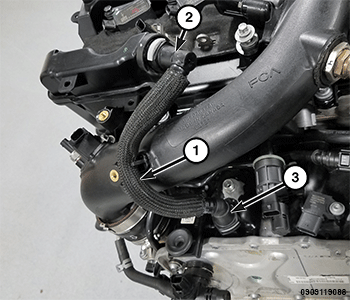

    GC0195846Courtesy of CHRYSLER GROUP, LLC
  2. Disconnect the quick couplings (2) and (3) and remove the idling engine oil vapor intake pipe (1).

INSTALLATION

  1. Install the engine idling oil vapor intake pipe and connect the quick couplings.
  2. Install the side engine cover and top engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
