Removal And Installation

REMOVAL

1. Remove the cylinder head. Refer to CYLINDER HEAD, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

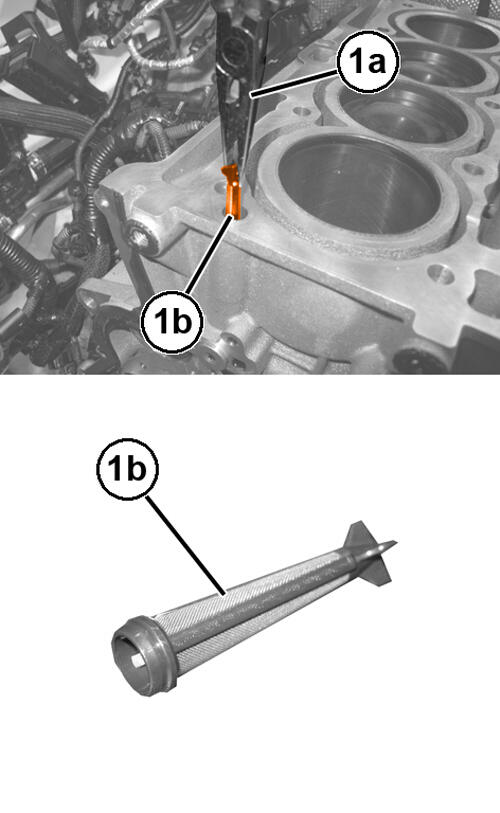

2. Using suitable pliers (1a), remove the variable valve timing system filter (1b).

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

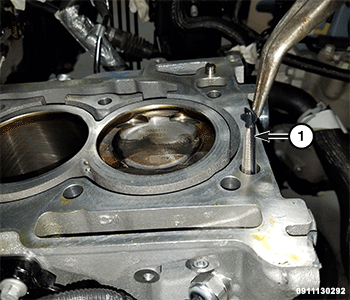

1. Install the variable valve timing system filter (1) in the engine block.
2. Install the cylinder head gasket and cylinder head. Refer to CYLINDER HEAD, REMOVAL AND INSTALLATION .
