Oil Pump Pick-Up Tube

REMOVAL

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
2. Disconnect the negative battery cable.
3. Remove the oil pan. Refer to PAN, OIL, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

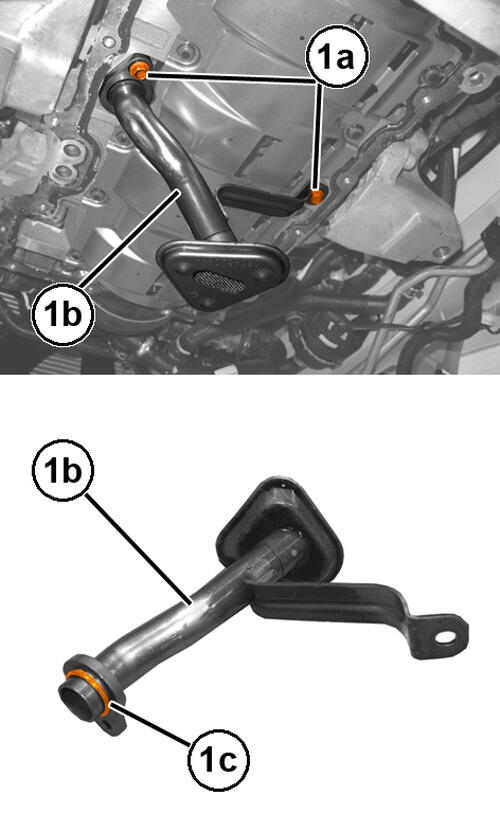

4. Remove the screws (1a) and remove engine oil pick-up tube (1b).
5. Remove and discard the O-ring (1c).

INSTALLATION

1. Install a new O-ring seal on the oil pick-up tube.

   Courtesy of CHRYSLER GROUP, LLC

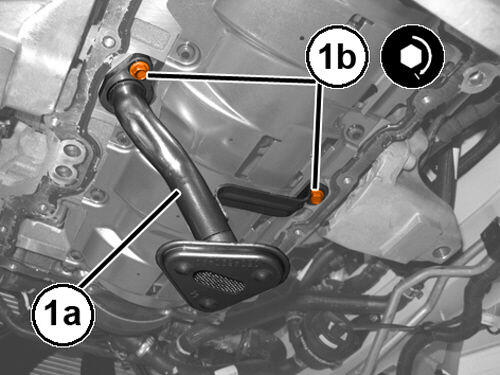

2. Install the engine oil pick-up tube (1a) and tighten the screws (1b) to the proper specification Refer to TORQUE SPECIFICATIONS  .
3. Install the oil pan. Refer to PAN, OIL, REMOVAL AND INSTALLATION .
4. If removed, install the oil filter and fill the engine crankcase with the proper oil to the correct level. Refer to CAPACITIES AND RECOMMENDED FLUIDS, SPECIFICATIONS .
5. Connect the negative battery cable.
6. Remove the support and lower the vehicle.
