Engine Oil Supply Pipe To Turbocharger

REMOVAL

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
2. Disconnect and isolate the negative battery cable.
3. Remove the catalytic converter and catalytic converter mounting bracket. Refer to CONVERTER, CATALYTIC, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

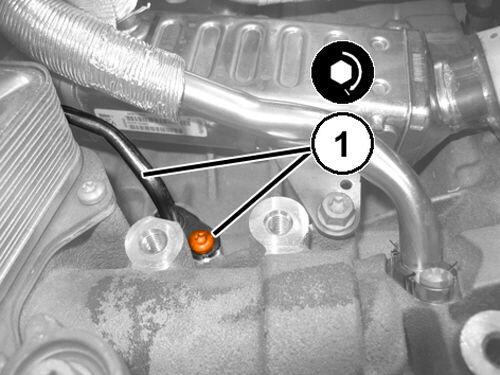

4. Remove the bolt (1) and disconnect turbocharger oil supply pipe from the crankcase.

   Courtesy of CHRYSLER GROUP, LLC

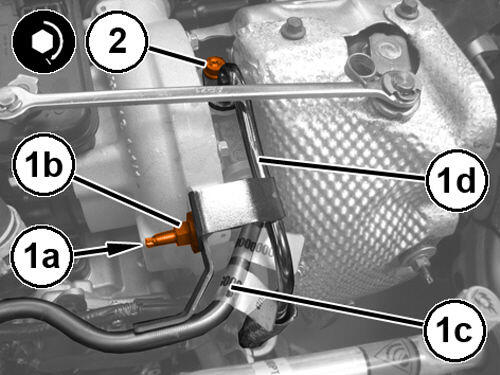

5. Remove the bolt (2) from the turbocharger oil supply pipe connector on the turbocharger.
6. Remove the nut (1b) securing the engine coolant pipe (1c) and the turbocharger oil supply pipe (1d) to the turbocharger.

   Courtesy of CHRYSLER GROUP, LLC

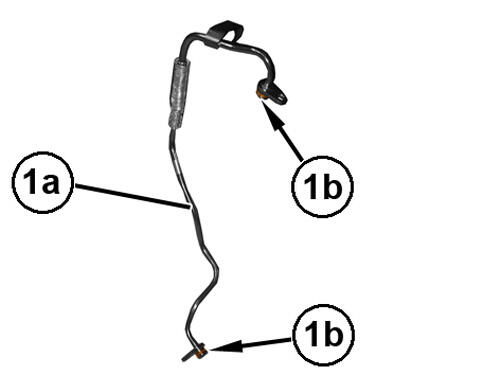

7. Remove the turbocharger oil supply pipe (1a), complete with O-rings (1b).

INSTALLATION

1. Install the turbocharger oil supply pipe between the turbocharger and crankcase, complete with new O-rings.

   Courtesy of CHRYSLER GROUP, LLC

   NOTE:

   The bolt connecting the turbocharger oil supply pipe to the turbocharger (2) is shorter than the bolt connecting the turbocharger oil supply pipe to the crankcase.

2. Install the turbocharger oil supply pipe (1d) to the turbocharger and tighten the bolt (2) to the proper specification Refer to TORQUE SPECIFICATIONS  .
3. Tighten the nut (1b) securing the turbocharger coolant pipe (1c) and the turbocharger oil supply pipe (1d) to the turbocharger.

   Courtesy of CHRYSLER GROUP, LLC

   NOTE:

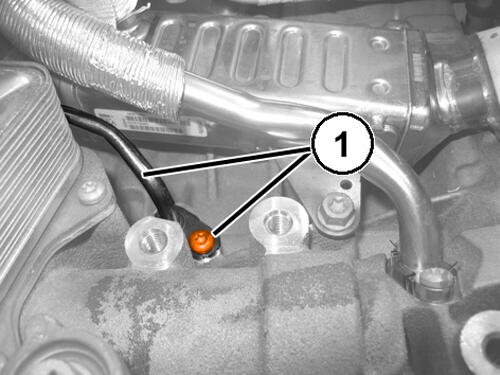

   The bolt connecting the turbocharger oil supply pipe to the crankcase (1) is longer than the bolt connecting the turbocharger oil supply pipe to the turbocharger.

4. Install the turbocharger oil supply pipe to the crankcase and tighten the bolt (1) to the proper specification Refer to TORQUE SPECIFICATIONS  .
5. Install the catalytic converter mounting bracket and the catalytic converter. Refer to CONVERTER, CATALYTIC, REMOVAL AND INSTALLATION .
6. Connect the negative battery cable.
7. Remove the support and lower the vehicle.
