Engine Oil Return Pipe From Turbocharger

REMOVAL

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
2. Disconnect the negative battery cable.
3. Remove the catalytic converter and catalytic converter mounting bracket. Refer to CONVERTER, CATALYTIC, REMOVAL AND INSTALLATION .
4. Remove the water pump inlet connector. Refer to TUBE, WATER INLET, REMOVAL AND INSTALLATION .
5. Remove the turbocharger coolant supply pipe. Refer to LINES, TUBES AND HOSES, TURBOCHARGER, OIL AND COOLANT, REMOVAL AND INSTALLATION LINES, TUBES AND HOSES, TURBOCHARGER, OIL AND COOLANT, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

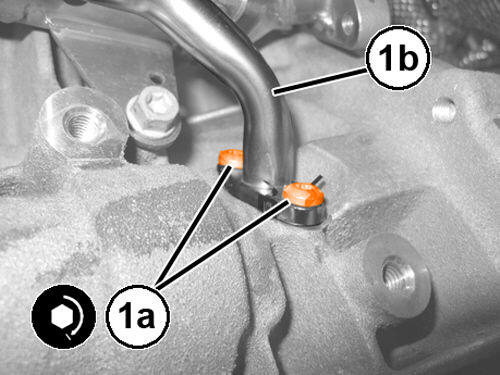

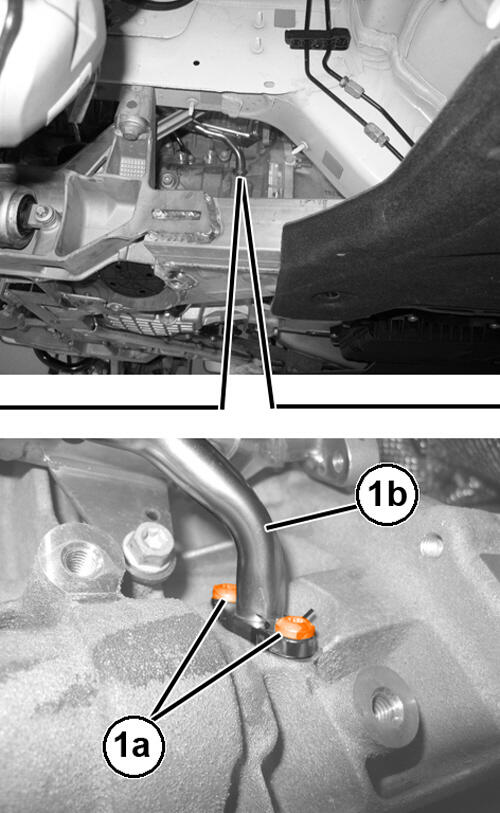

6. Remove the bolts (1a) and the turbocharger oil return pipe (1b) from the crankcase.

   Courtesy of CHRYSLER GROUP, LLC

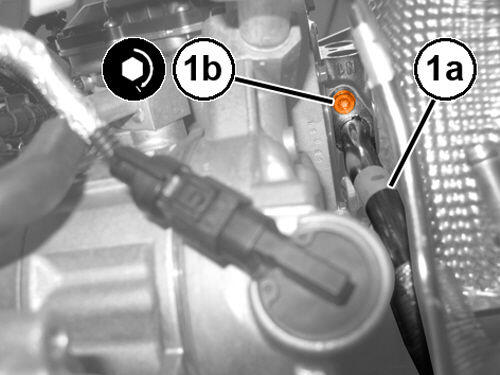

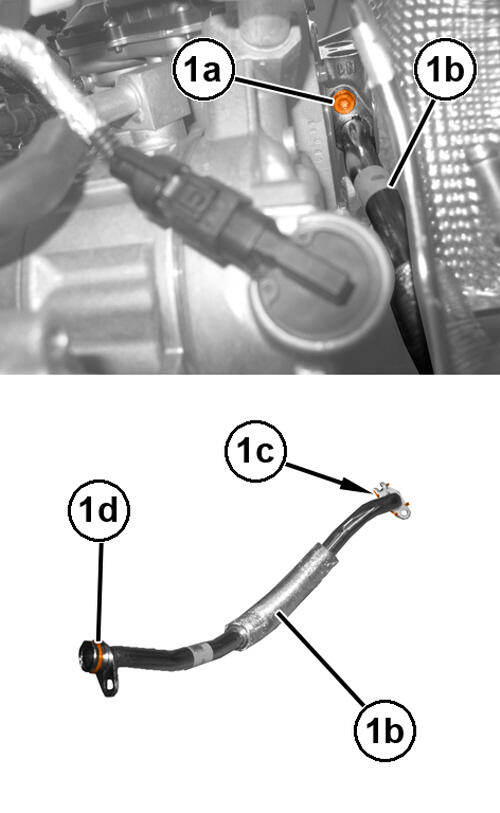

7. Remove the bolt (1a) and remove the turbocharger oil return pipe (1b) from turbocharger, complete with seal (1c) and O-ring (1d).

INSTALLATION

1. Remove all sealant residues.

   Courtesy of CHRYSLER GROUP, LLC

2. Install the turbocharger oil return pipe (1a) between the turbocharger and the crankcase, complete with new gasket and new O-ring, and tighten the bolt (1b) to the proper specification Refer to TORQUE SPECIFICATIONS  .

   Courtesy of CHRYSLER GROUP, LLC

3. Tighten the bolts (1a) securing the turbocharger oil return pipe (1b) to the crankcase to the proper specification Refer to TORQUE SPECIFICATIONS  .
4. Install the turbocharger coolant supply pipe. Refer to LINES, TUBES AND HOSES, TURBOCHARGER, OIL AND COOLANT, REMOVAL AND INSTALLATION .
5. Install the water pump inlet connector. Refer to TUBE, WATER INLET, REMOVAL AND INSTALLATION .
6. Install the catalytic converter mounting bracket and the catalytic converter. Refer to CONVERTER, CATALYTIC, REMOVAL AND INSTALLATION .
7. Connect the negative battery cable.
8. Remove the support and lower the vehicle.
