Air Pressure Sensor

REMOVAL

1. Disconnect and isolate the negative battery cable.
2. Remove the top engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

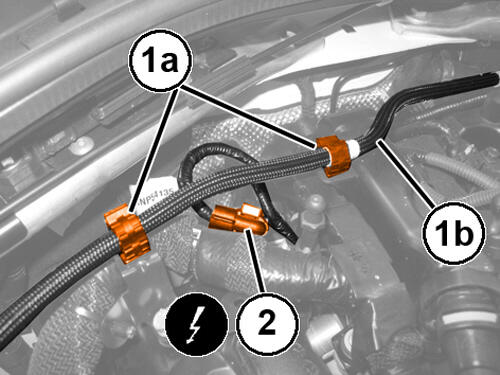

3. Open the clamps (1a) and reposition the degassing pipe (1b).
4. Disconnect the air pressure sensor electrical connection (2).

   Courtesy of CHRYSLER GROUP, LLC

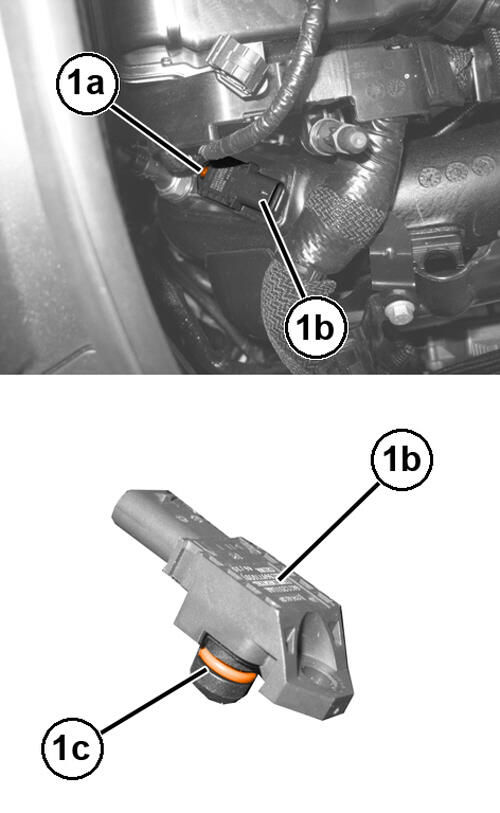

5. Remove the bolt (1a) and remove the air pressure sensor (1b) complete with O-ring (1c).

INSTALLATION

1. Install the air pressure sensor complete with new O-ring and tighten the bolt.
2. Connect the electrical connection for the air pressure sensor.
3. Reposition the degassing pipe and close the clamps.
4. Install the top engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
5. Connect the negative battery cable.
