Bypass Pipe Between Surge Valve And Turbocharger

REMOVAL

1. Remove the top engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

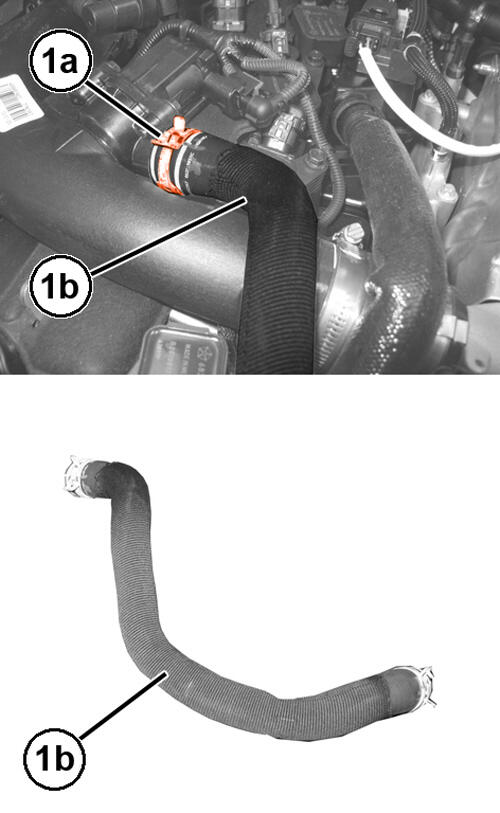

2. Loosen the retaining clamp (1a) and disconnect the bypass pipe (1b) from the intake bypass pipe connector.

   Courtesy of CHRYSLER GROUP, LLC

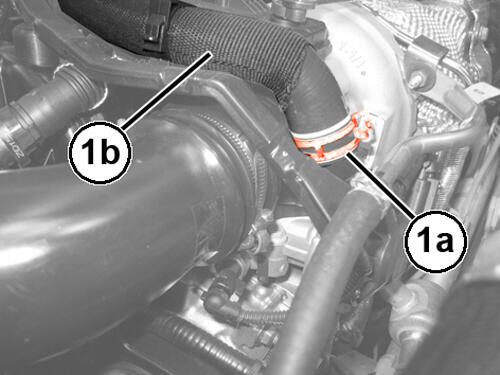

3. Loosen the retaining clamp (1a) and disconnect the bypass pipe (1b) from the surge valve.

INSTALLATION

1. Install the turbocharger bypass pipe between the surge valve and the intake bypass pipe connector and close the retaining clamps.
2. Install the top engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
