Camshaft Sprocket

REMOVAL

1. Remove the timing chain cover. Refer to COVER(S), ENGINE TIMING, REMOVAL AND INSTALLATION .
2. Remove the cam chain. Refer to CHAIN AND SPROCKETS, TIMING, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

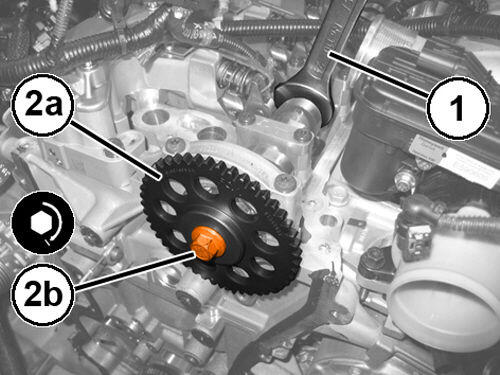

3. Lock the camshaft with a suitable tool (1).
4. Remove and discard the bolt (2a) and remove the camshaft sprocket (2b).

INSTALLATION

1. Remove all sealant residues.

   Courtesy of CHRYSLER GROUP, LLC

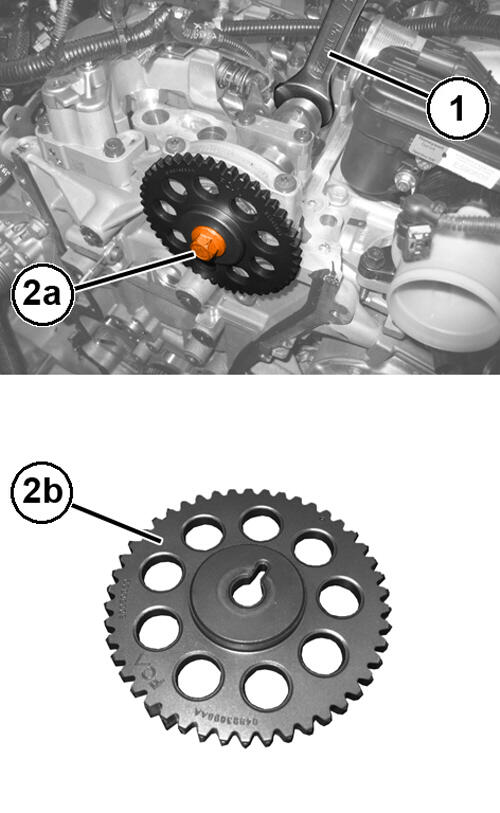

2. Lock the camshaft with a suitable tool (1).
3. Install the camshaft sprocket (2a) and tighten the NEW  bolt (2b) to the proper specification Refer to TORQUE SPECIFICATIONS  .
4. Install the cam chain. Refer to CHAIN AND SPROCKETS, TIMING, REMOVAL AND INSTALLATION .
5. Install the timing chain cover. Refer to COVER(S), ENGINE TIMING, REMOVAL AND INSTALLATION .
6. If removed, install the oil filter and fill the engine crankcase with the proper oil to the correct level. Refer to OIL, STANDARD PROCEDURE .
7. Run the engine until it reaches normal operating temperature. Check cooling system for correct fluid level. Refer to ADDING ADDITIONAL COOLANT .
