Cam Chain TENSIONER

REMOVAL

1. Remove the timing chain cover. Refer to COVER(S), ENGINE TIMING, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

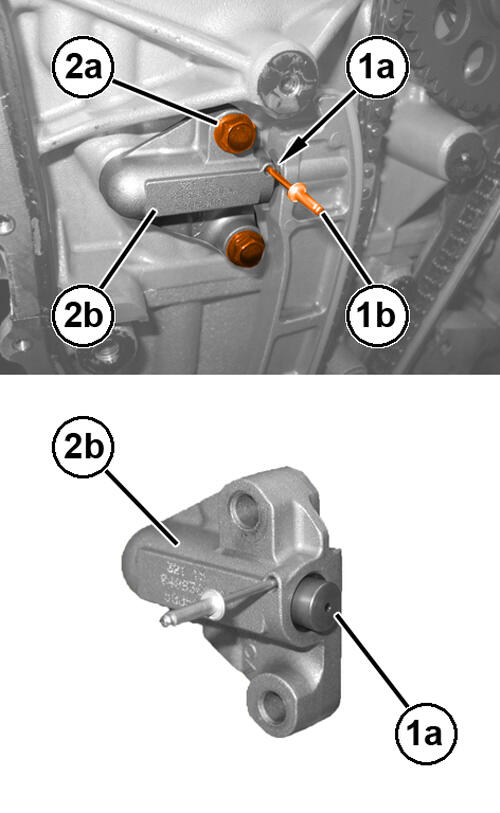

2. Use the cam chain tensioner arm to push in the tensioner piston (1a) and insert the (special tool #8514A, Pins, Tensioner) (1b) to hold the tensioner piston in the retracted position.
3. Remove the bolts (2a) and remove the cam chain tensioner (2b).

INSTALLATION

1. Remove all sealant residues.

   Courtesy of CHRYSLER GROUP, LLC

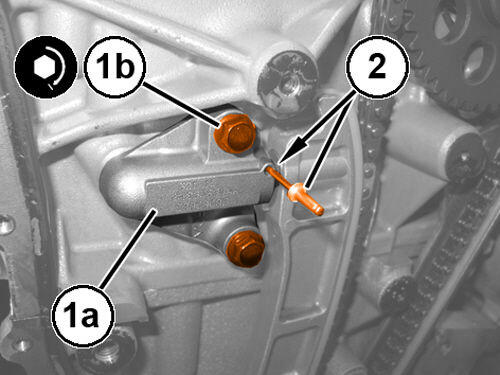

2. Install the cam chain tensioner (1a) and tighten the bolts (1b) to the proper specification Refer to TORQUE SPECIFICATIONS  .
3. Hold the cam chain tensioner arm against the tensioner piston, remove the lock pin (2) and release the tensioner arm.
4. Install the timing chain cover. Refer to COVER(S), ENGINE TIMING, REMOVAL AND INSTALLATION .
5. If removed, install the oil filter and fill the engine crankcase with the proper oil to the correct level. Refer to OIL, STANDARD PROCEDURE .
6. Run the engine until it reaches normal operating temperature. Check cooling system for correct fluid level. Refer to ADDING ADDITIONAL COOLANT .
