Left Hand (LH) Front Half Shaft / Intermediate Shaft

REMOVAL

1. Raise and support the vehicle. Refer to, HOISTING .
2. Remove the tire and wheel assembly (Refer to REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

3. With the tool 1870815000 (1a) remove and DISCARD  the axle nut (1b) fixing the right front driveshaft to the wheel hub.

   Courtesy of CHRYSLER GROUP, LLC

4. Using a suitable tool, disconnect the left front halfshaft (1a) from the wheel hub (1b).

   Courtesy of CHRYSLER GROUP, LLC

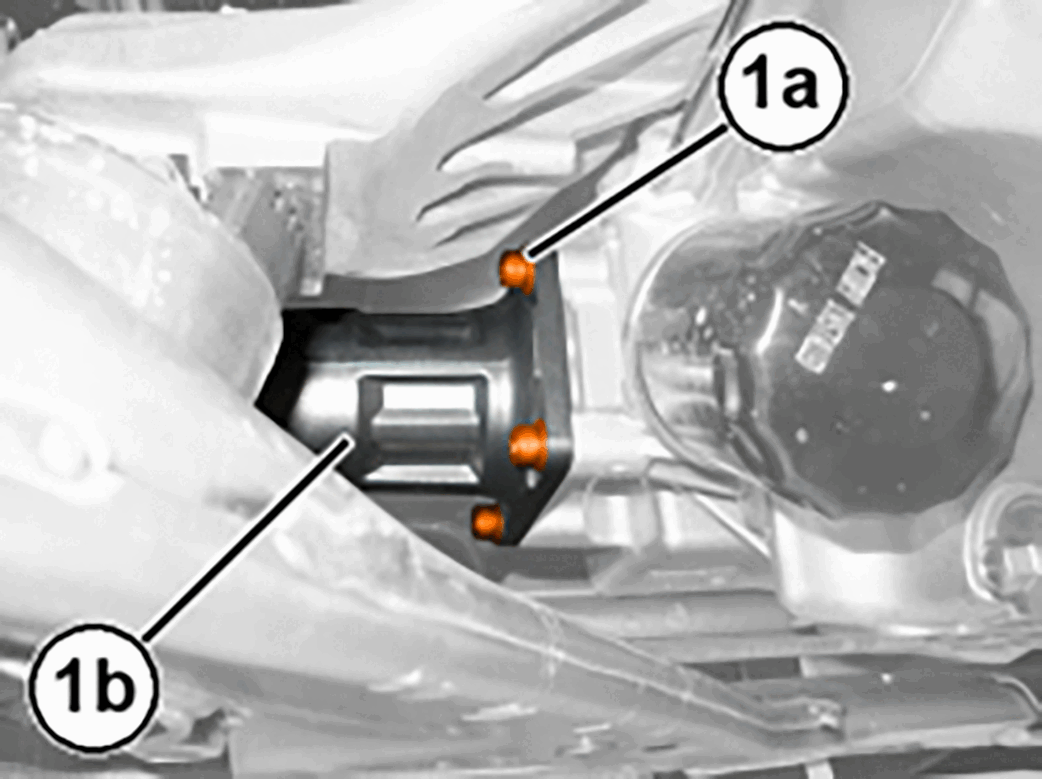

5. Remove the fasteners (1a) fixing the left front halfshaft bearing support (1b) to the engine oil sump.

   Courtesy of CHRYSLER GROUP, LLC

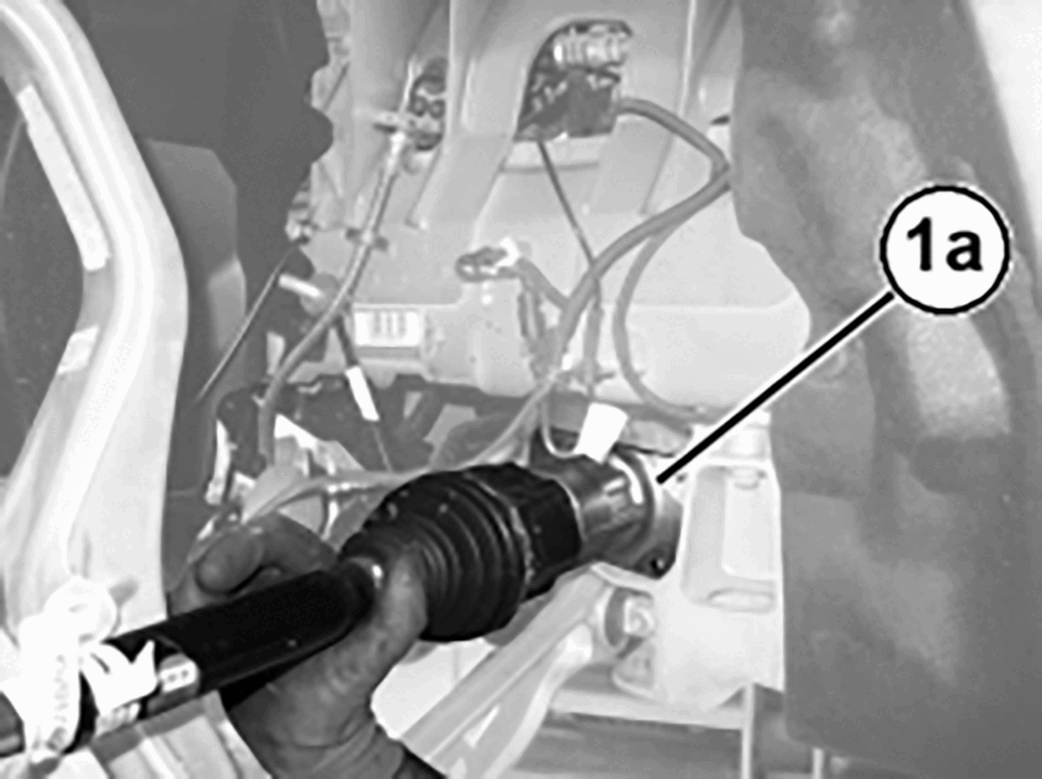

6. Remove the halfshaft assembly (1a) from the vehicle.

   Courtesy of CHRYSLER GROUP, LLC

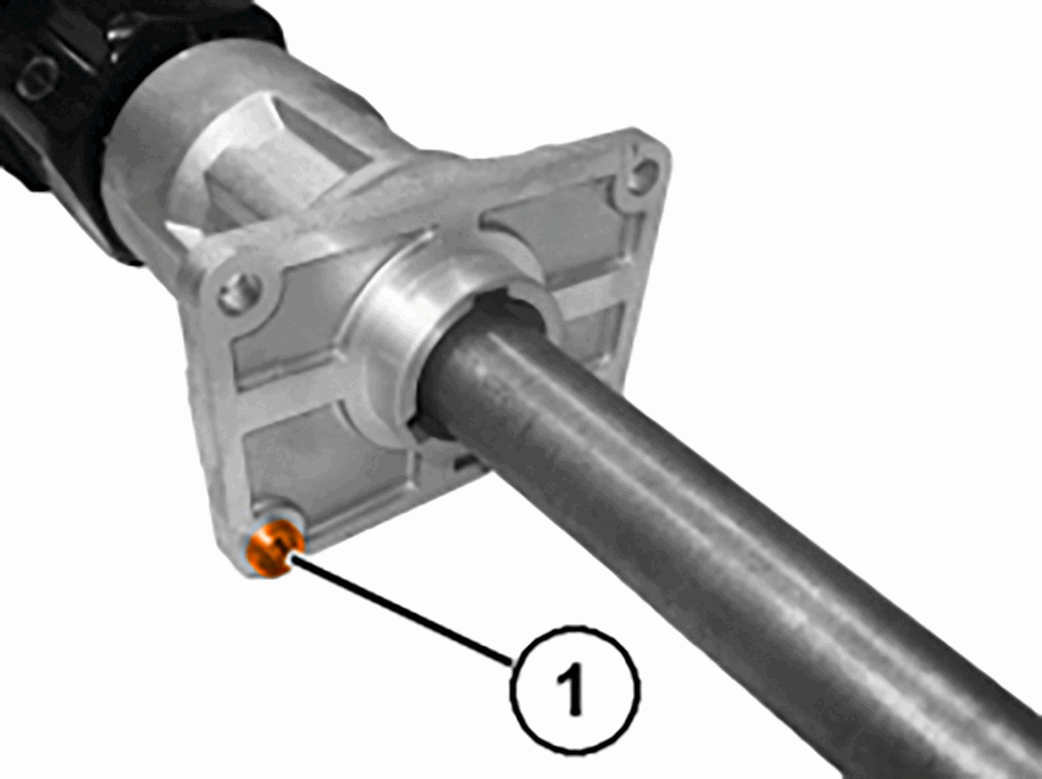

7. Be certain the locating dowel (1) is in the intermediate shaft housing. Remove from the oil pan if necessary.

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

1. Install the halfshaft assembly (1a).

   Courtesy of CHRYSLER GROUP, LLC

2. Install the halfshaft (1b) to oil pan fasteners (1a) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS  .

   Courtesy of CHRYSLER GROUP, LLC

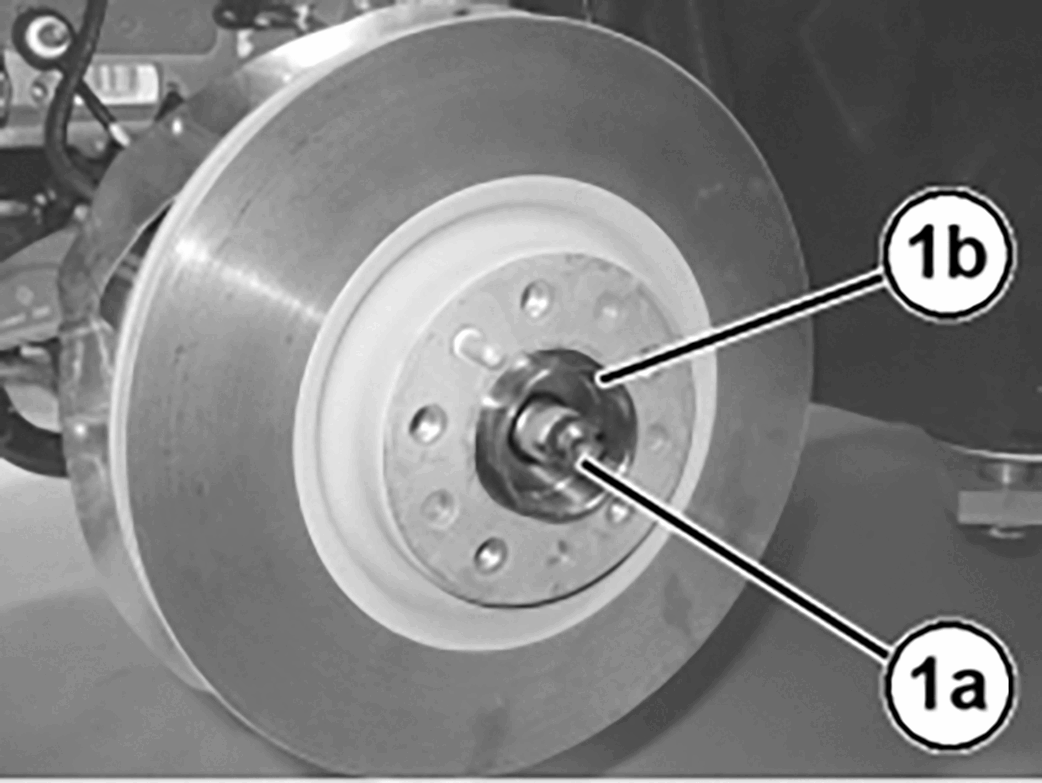

3. Place the outboard end of the axle (1a) into the wheel hub (1b).
4. Install the strut assembly. Refer to STRUT, SUSPENSION, ASSEMBLY, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

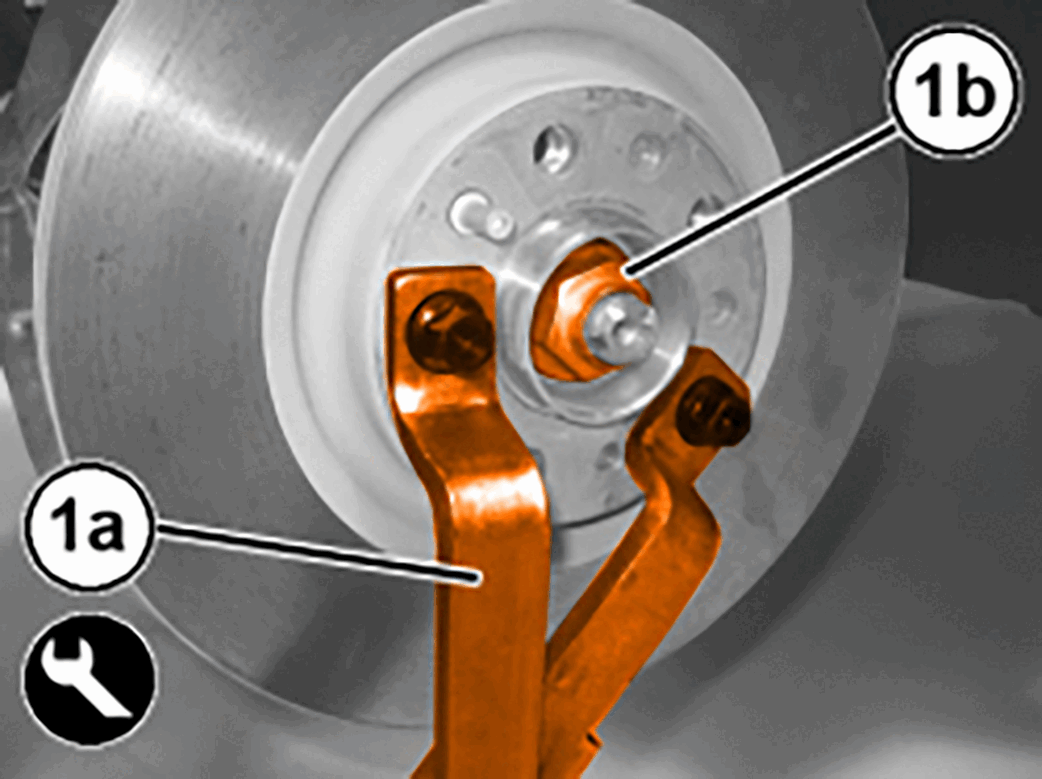

5. Fit the 1870815000 tool (1a) and install and tighten a NEW  hub nut (1b) to the proper specification. Refer to FRONT, TECHNICAL SPECIFICATIONS .
6. Install the right front tire and wheel assembly (Refer to REMOVAL AND INSTALLATION .
7. Check the front axle fluid level and add as necessary. Refer to FLUID, STANDARD PROCEDURE .
8. Remove the support and lower the vehicle.
