Removal And Installation: Removal
- Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
- Remove the rear knuckle. Refer to KNUCKLE, REAR, REMOVAL AND INSTALLATION .

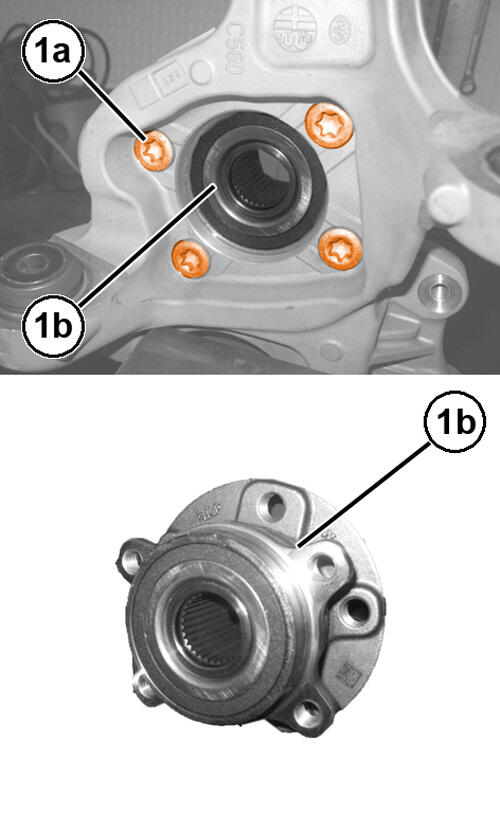

- Position the knuckle in a vice with protected jaws, and remove the hub and bearing to knuckle mounting bolts (1a) and remove the rear hub and bearing (1b).
