Sensor-Camshaft Position 2/1 (2.9L) Connector End View (D1510B)

Harness-Family: Injector_LT

Color: BLACK

Gender: FEMALE

Part Number: 1/01637/87

Part Description: Not Available

Connector No: D1510B

Option: 2.9L

Repair Kit Part Number: Not Available

Cavity Count: null

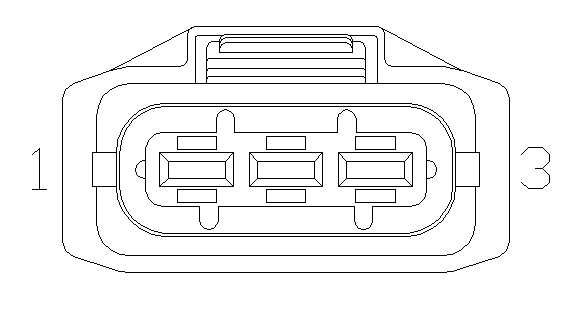

Fig 1: Sensor-Camshaft Position 2/1 Connector End View (2.9L)

Courtesy of CHRYSLER

Fig 2: Sensor-Camshaft Position 2/1 Component Location (2.9L)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

K900

BK/VT

0.5

SENSOR GROUND

2.9L

K444

GY/WH

0.5

CMP SIGNAL 3

2.9L

K668

RD/GN

0.5

5 VOLT SUPPLY

2.9L

⁽¹⁾	Pins not listed are not used for this connector
