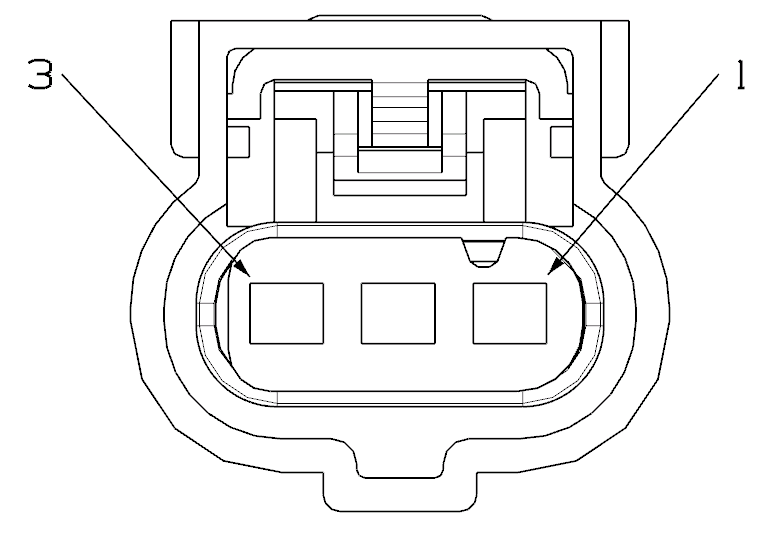

Sensor-Engine Oil Pressure 1 (2.9L) Connector End View (D1543A)

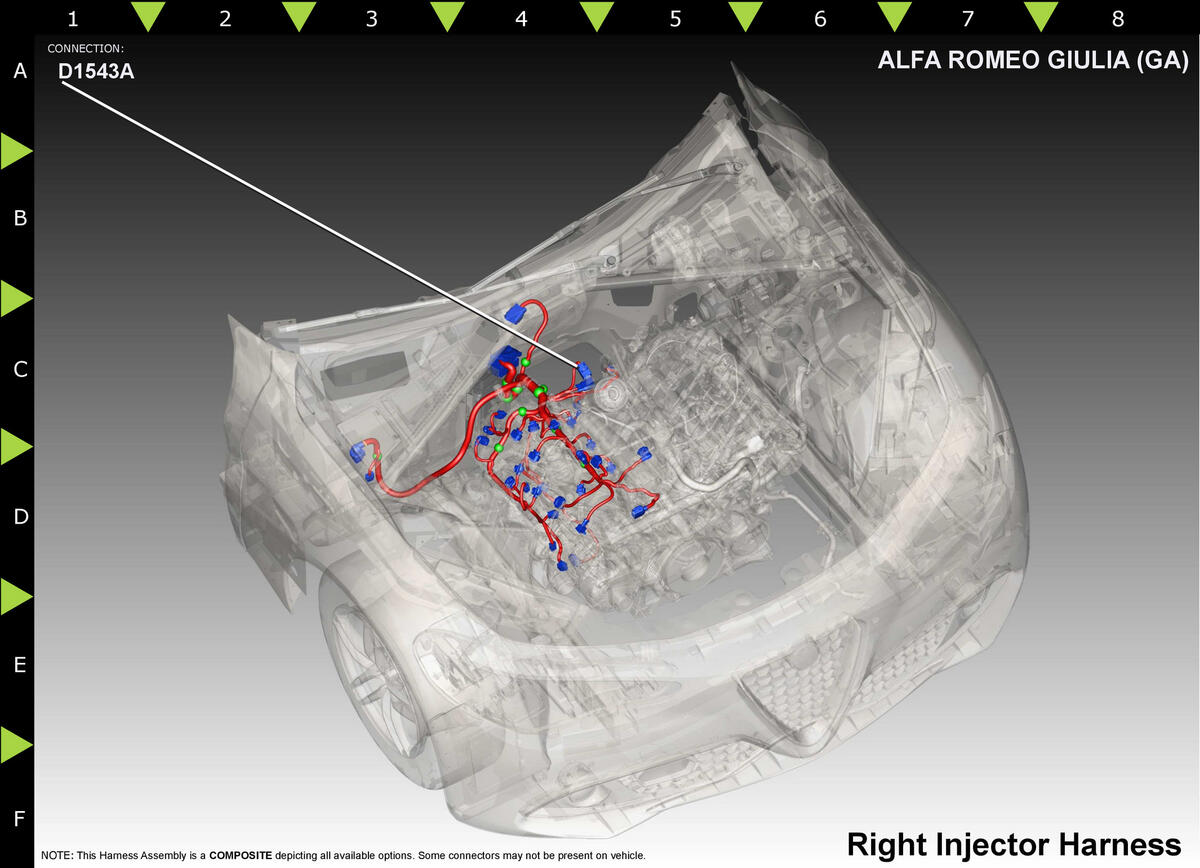

Harness-Family: Injector_RT
Color: BLACK
Gender: FEMALE
Part Number: 54200308
Part Description: Not Available
Connector No: D1543A
Option: 2.9L
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | F856 | YE/RD | 0.75 | 5 VOLT SUPPLY | 2.9L | ||
| 2 | G6 | DB/RD | 0.75 | EOP SIGNAL | 2.9L | ||
| 3 | K900 | BK | 0.75 | SENSOR GROUND | 2.9L | ||
|
|||||||
