Sensor-Fuel Tank Pressure (Standard) Connector End View (D2487A)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 1/23218/97

Part Description: Not Available

Connector No: D2487A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

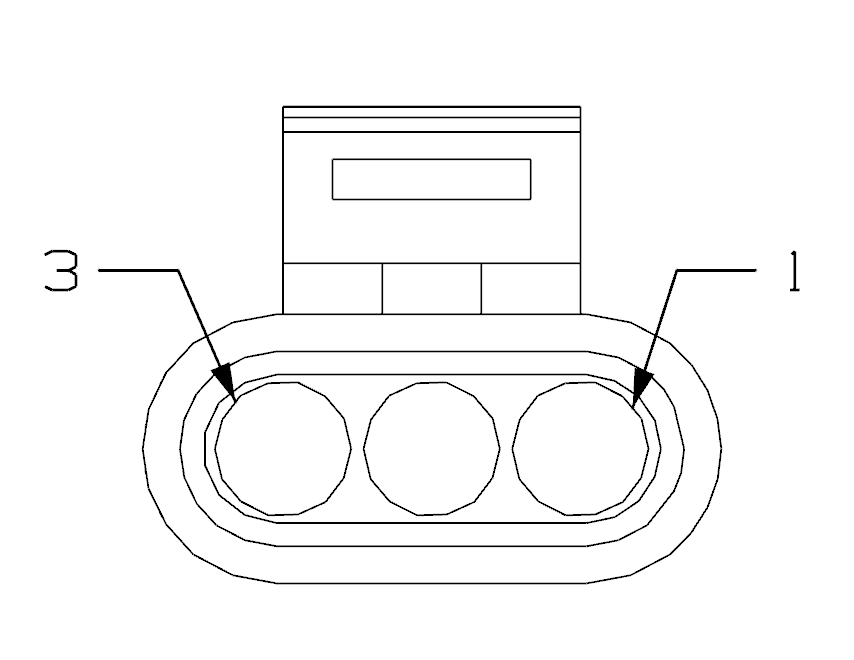

Fig 1: Sensor-Fuel Tank Pressure Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Sensor-Fuel Tank Pressure Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

N70

GN/OG

0.35

FUEL TANK PRESSURE SIGNAL

2.0L EXCEPT EXPORT

K855

GN/YE

0.35

5 VOLT SUPPLY

2.0L EXCEPT EXPORT

⁽¹⁾	Pins not listed are not used for this connector
