Sensor-LP EGR Cooler Temperature (2.2L Premium) Connector End View (D2529A)

Harness-Family: Engine_22L

Color: BLACK

Gender: FEMALE

Part Number: 1/11585/97

Part Description: Not Available

Connector No: D2529A

Option: 2.2L PREMIUM

Repair Kit Part Number: Not Available

Cavity Count: null

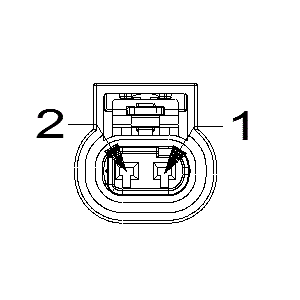

Fig 1: Sensor-Lp Egr Cooler Temperature Connector End View (2.2L PREMIUM)

Courtesy of CHRYSLER

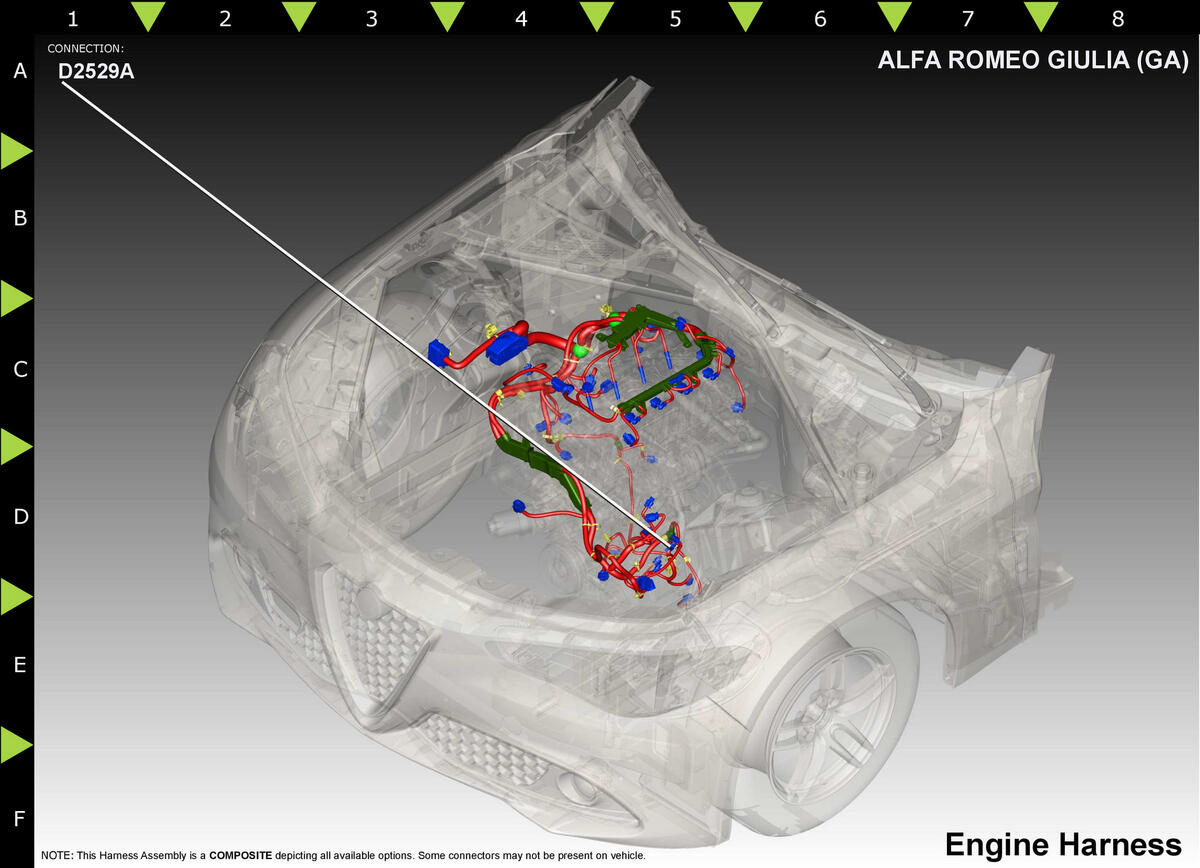

Fig 2: Sensor-Lp Egr Cooler Temperature Component Location (2.2L PREMIUM)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

K666

VT/YE

0.5

SENSOR RETURN

2.2L PREMIUM

K691

0.5

EGR COOLER TEMP SIGNAL

2.2L PREMIUM

⁽¹⁾	Pins not listed are not used for this connector
