Sensor-Oil Level (2.0L) Connector End View (D1577A)

Harness-Family: Engine_20L

Color: BLACK

Gender: FEMALE

Part Number: 09_4534_35

Part Description: Not Available

Connector No: D1577A

Option: 2.0L

Repair Kit Part Number: Not Available

Cavity Count: null

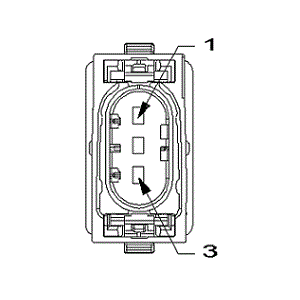

Fig 1: Sensor-Oil Level Connector End View (2.0L)

GCWD1000374

Courtesy of CHRYSLER

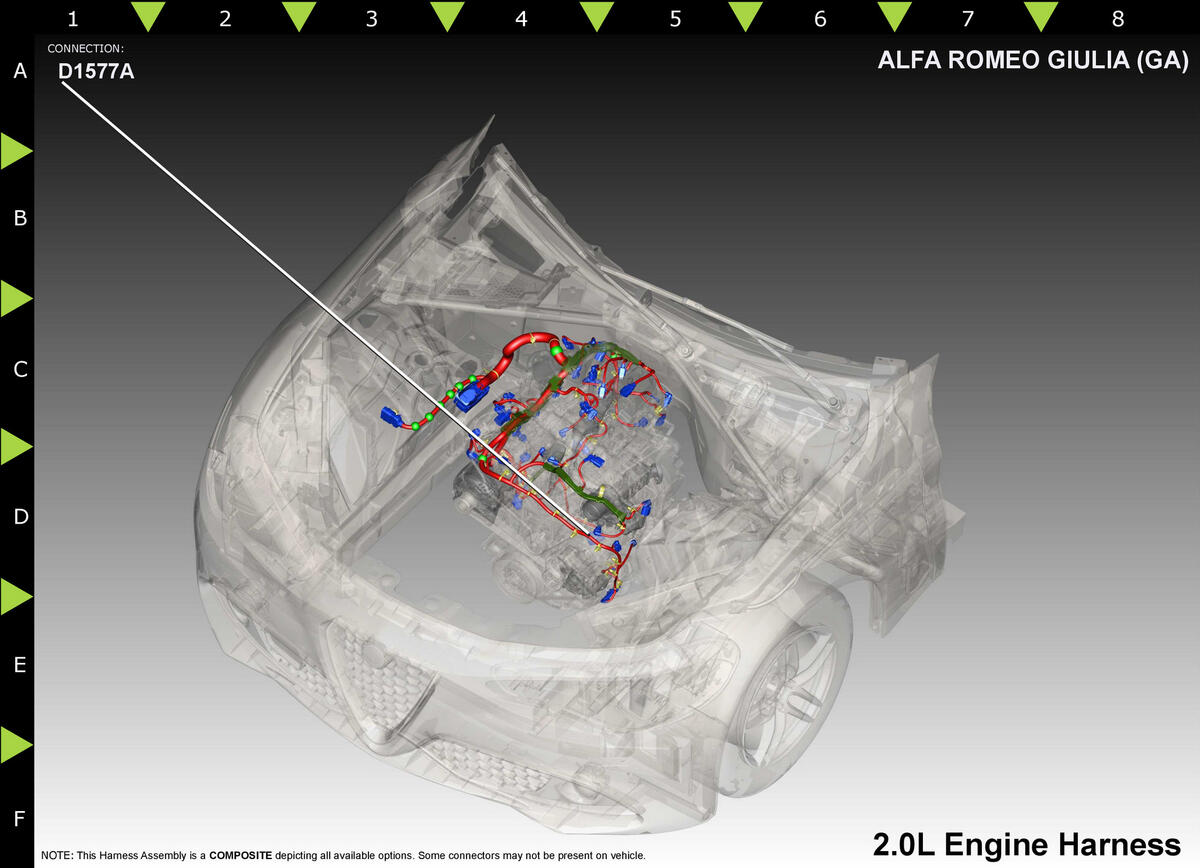

Fig 2: Sensor-Oil Level Component Location (2.0L)

GCWD1267481

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

F344

BN/GY

0.5

FUSED ASD RELAY OUTPUT

2.0L

2

K917

BN/BU

0.35

SENSOR GROUND

2.0L

3

K358

GN

0.35

OIL LEVEL SIGNAL

2.0L

⁽¹⁾	Pins not listed are not used for this connector
