Clutch C

DISASSEMBLY

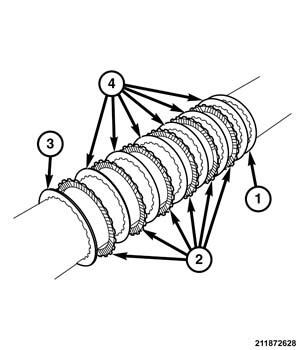

Fig 1: Clutch C Exploded View

Courtesy of CHRYSLER GROUP, LLC

Courtesy of CHRYSLER GROUP, LLC

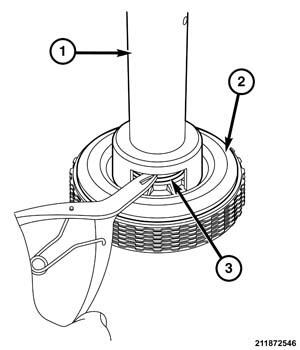

1. Place the C-clutch (2) in a suitable press.
2. Using special tool 8680 (1) compress the C-clutch (2) enough to remove the snap ring (3).
3. Remove the snap ring (3).

   Courtesy of CHRYSLER GROUP, LLC

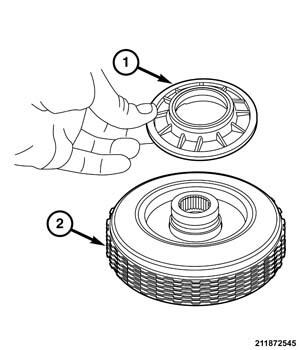

4. Remove the C-clutch retainer (1).

   Courtesy of CHRYSLER GROUP, LLC

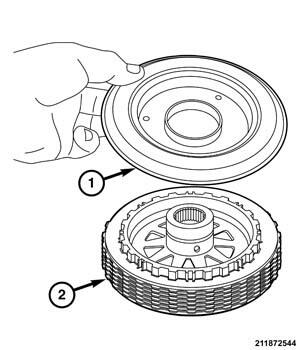

5. Remove the C-clutch piston (1).

   Courtesy of CHRYSLER GROUP, LLC

6. Remove the belleville spring (1).

   Courtesy of CHRYSLER GROUP, LLC

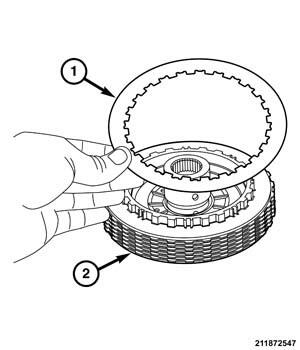

7. Remove the wave plate (1).

   Courtesy of CHRYSLER GROUP, LLC

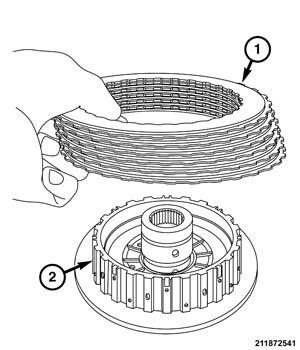

8. Remove the 6 friction and steel plates (1).

   Courtesy of CHRYSLER GROUP, LLC

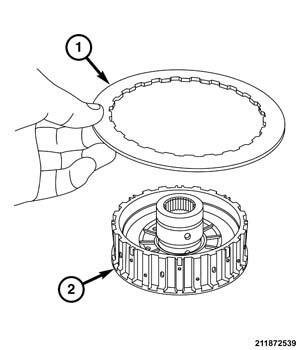

9. Remove the backing plate (1).

   Courtesy of CHRYSLER GROUP, LLC

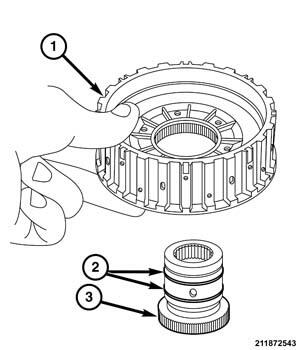

10. Separate the clutch shaft (3) from the clutch hub (1).
11. Remove two O-rings from the C-clutch shaft (2).

ASSEMBLY

Courtesy of CHRYSLER GROUP, LLC

Courtesy of CHRYSLER GROUP, LLC

1. Replace the C-clutch seals (2).
2. Install C-clutch hub (1) onto the C-clutch shaft (3).

   Courtesy of CHRYSLER GROUP, LLC

3. Install the backing plate (1).

   Courtesy of CHRYSLER GROUP, LLC

4. Install 6 friction and steel clutch plates (1).

   Courtesy of CHRYSLER GROUP, LLC

5. Install the wave plate (1).

   Courtesy of CHRYSLER GROUP, LLC

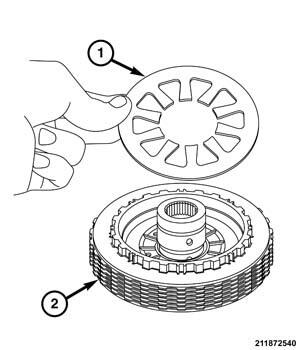

6. Install the belleville spring (1).

   Courtesy of CHRYSLER GROUP, LLC

7. Install the C-clutch piston (1).

   Courtesy of CHRYSLER GROUP, LLC

8. Install the C-clutch retainer (1).

   Courtesy of CHRYSLER GROUP, LLC

9. Place the C-clutch (2) in a suitable press.
10. Using special tool 8680 (1) compress the clutch enough to install the snap ring (3).
11. Install the snap ring (3).
12. Using (special tool #8901A, Pressing Tool) and (special tool #10429, Gauge, Force) measure the C-clutch clearance, Refer to clutch clearance chart for specifications.
