Clutch E

DISASSEMBLY

Fig 1: Clutch E Exploded View

Courtesy of CHRYSLER GROUP, LLC

Courtesy of CHRYSLER GROUP, LLC

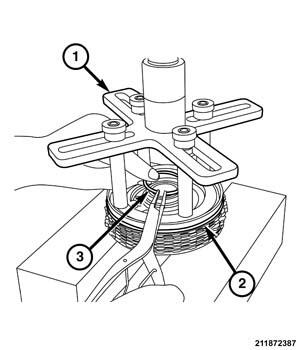

1. Place E-clutch (2) in a suitable press.
2. Using Pressing Tool 8901A

   (special tool #8901A, Pressing Tool)

   Courtesy of CHRYSLER GROUP, LLC

   (1) compress the E-clutch piston enough to remove the snap ring (3).

   Courtesy of CHRYSLER GROUP, LLC

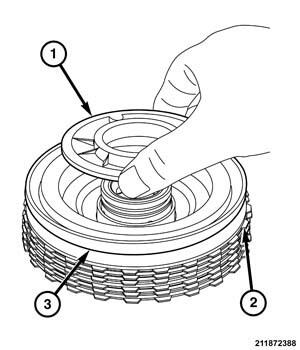

3. Remove the E-clutch piston support (1).

   Courtesy of CHRYSLER GROUP, LLC

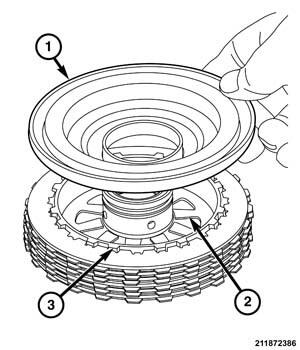

4. Remove the E-clutch piston (1).

   Courtesy of CHRYSLER GROUP, LLC

   NOTE:

   Pay attention to the orientation of the plates.

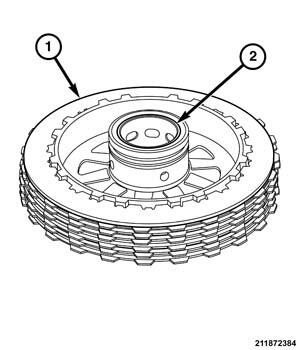

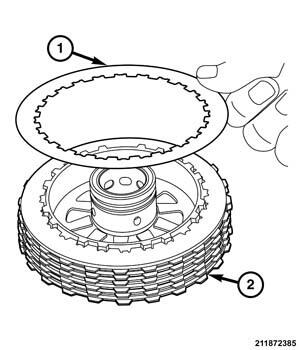

5. Remove the wave washer (1), frictions and steels.

   Courtesy of CHRYSLER GROUP, LLC

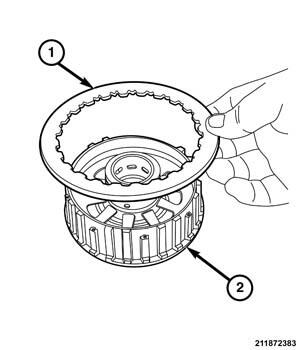

6. Remove the thrust plate (1) last.

   Courtesy of CHRYSLER GROUP, LLC

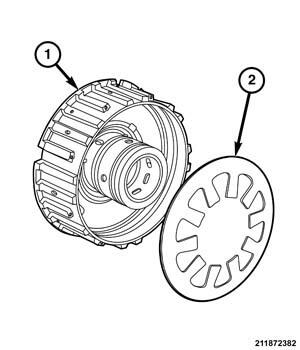

7. Remove the belleville spring (2) from the E-clutch hub (1).

   Courtesy of CHRYSLER GROUP, LLC

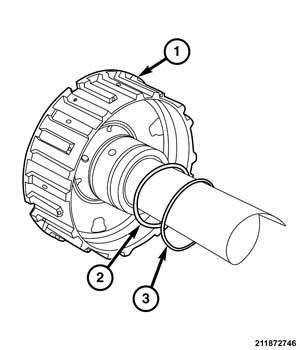

8. Remove the E-clutch (1) seal (2) and O-ring (3).

ASSEMBLY

Courtesy of CHRYSLER GROUP, LLC

Courtesy of CHRYSLER GROUP, LLC

1. Install the E-clutch (1) seal (2) and O-ring (3).

   Courtesy of CHRYSLER GROUP, LLC

2. Install the belleville (2) spring into the E-clutch hub (1).

   Courtesy of CHRYSLER GROUP, LLC

3. Install the clutch pack thrust plate (1).

   Courtesy of CHRYSLER GROUP, LLC

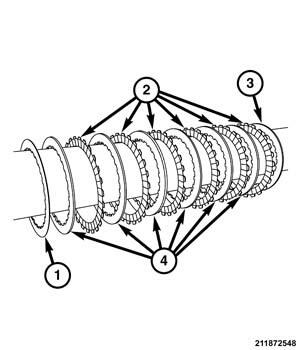

4. Install the clutch pack frictions and steels (1).

   Courtesy of CHRYSLER GROUP, LLC

5. Install the wave washer (1) last.

   Courtesy of CHRYSLER GROUP, LLC

6. Install the E-clutch piston (1) onto the hub.

   Courtesy of CHRYSLER GROUP, LLC

7. Install the E-clutch piston support (1).

   Courtesy of CHRYSLER GROUP, LLC

8. Place the E-clutch in a suitable arbor press.
9. Using Pressing Tool 8901A (special tool #8901A, Pressing Tool) compress the E-clutch enough to install the snap ring.
