Description And Operation
NOTE:

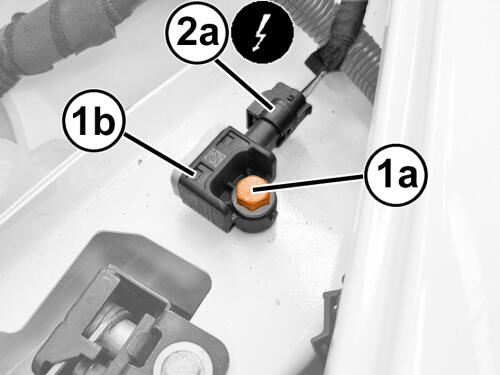

Damping sensor behind headlight shown in illustration.
There are five active damping sensors on the vehicle. There are two sensors located on each of the front steering knuckles, and there are two sensors located behind each headlight underneath the hood. There is one sensor located in the Chassis Domain Control Module (CDCM), which is located in the trunk of the vehicle.
