Sensor, Suspension: Removal

  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Disconnect and isolate the negative battery cable.
  3. Remove the corresponding tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .

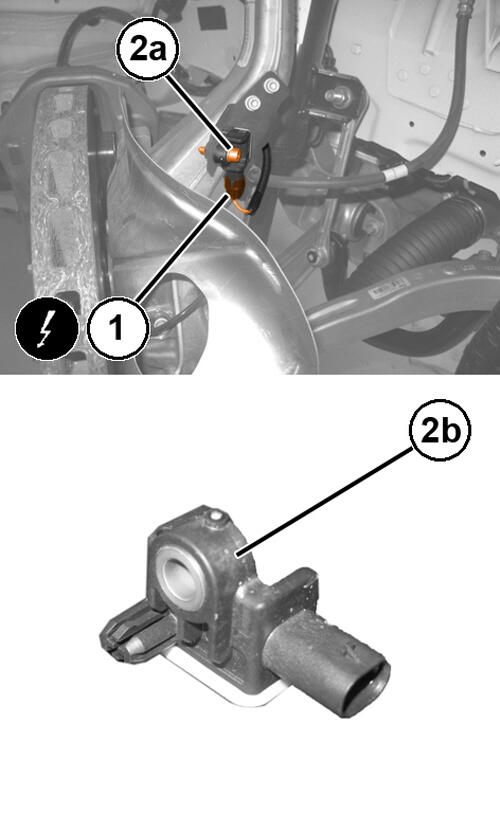

    GC0197929Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect the active damping sensor wire harness connector (1).
  5. Remove the active damping sensor to knuckle mounting bolt (2a) and remove the sensor from the vehicle (2b).
