Removal And Installation: RWD: Installation

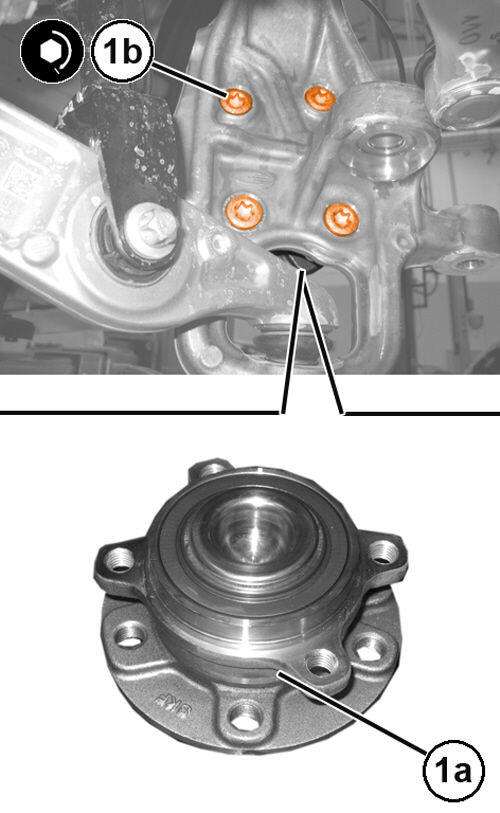

- Position the hub and bearing (1a) in place on the knuckle.
- Install and tighten the hub and bearing to knuckle mounting bolts to the proper specification. Refer to FRONT, TECHNICAL SPECIFICATIONS .

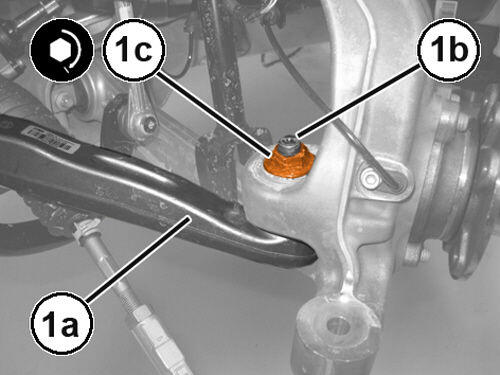

- Install the tension strut ball joint (1a) into the knuckle.
- Install a NEW
tension strut to knuckle mounting nut and tighten to the proper specification. Refer to FRONT, TECHNICAL SPECIFICATIONS .

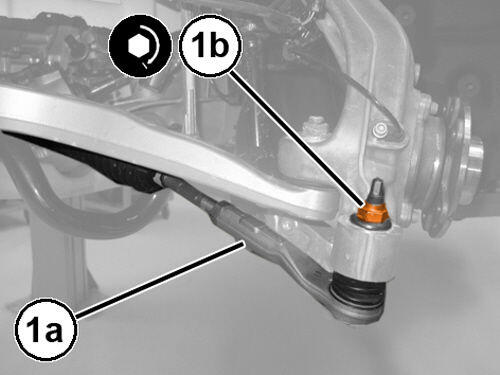

- Install the outer tie rod end to the knuckle and install a NEW outer tie rod end to knuckle mounting nut and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
- Install the front brake rotor. Refer to ROTOR, BRAKE, REMOVAL AND INSTALLATION .
- Install the tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .
- Remove the supports and lower the vehicle.
- Preform a wheel alignment. Refer to WHEEL ALIGNMENT, STANDARD PROCEDURE .
