Removal And Installation: RWD: Removal

Disconnect and isolate the negative battery cable.
Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
Remove the front brake rotor. Refer to ROTOR, BRAKE, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC
Remove the three disc brake guard to knuckle mounting bolts (1a) and remove the disc brake guard (1b).

Courtesy of CHRYSLER GROUP, LLC

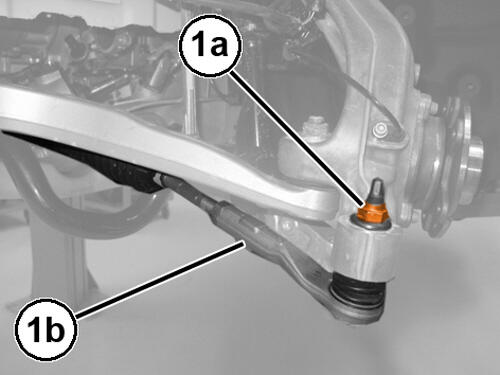

Remove the outer tie rod end to knuckle mounting nut (1a), and separate the outer tie rod end (1b) from the knuckle.

Courtesy of CHRYSLER GROUP, LLC

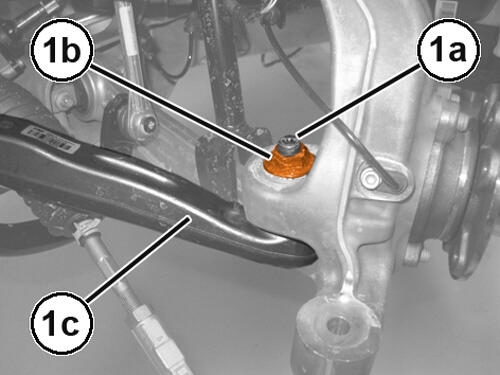

Holding the tension strut stud (1a) remove and DISCARD the tension strut (1c) to knuckle mounting nuts (1b).

Courtesy of CHRYSLER GROUP, LLC
Using special tool remover (special tool #2032500020, Remover, Front Suspension Ball Joint) (1a) and separate the tension strut (1b) from the knuckle.
Inspect and make sure that the bushing (2) is in its original position.

Courtesy of CHRYSLER GROUP, LLC

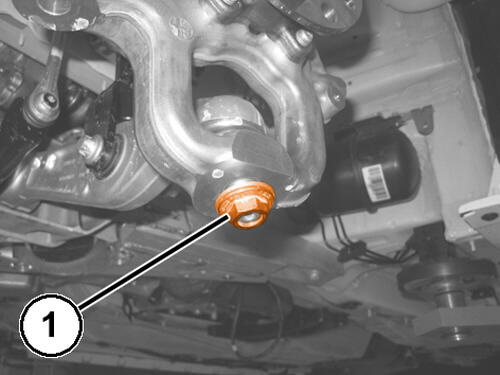

Remove and DISCARD the lower control arm to knuckle mounting nut (1).

Courtesy of CHRYSLER GROUP, LLC
Install special tool (special tool #2032500020, Remover, Front Suspension Ball Joint) (1a) remover and separate the lower control arm (1b) from the knuckle (1c).

Courtesy of CHRYSLER GROUP, LLC
Inspect the bushing (1) making sure that its in its original position.

Courtesy of CHRYSLER GROUP, LLC

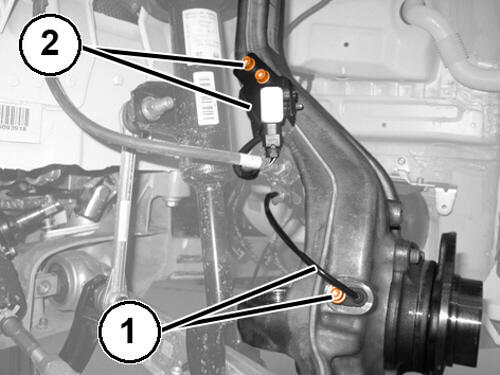

Remove the wheel speed sensor to knuckle mounting bolt (1).
Remove the wheel speed sensor from the knuckle and carefully position aside.
Remove the two active damping sensor bracket mounting bolts (2) and position aside.

Courtesy of CHRYSLER GROUP, LLC

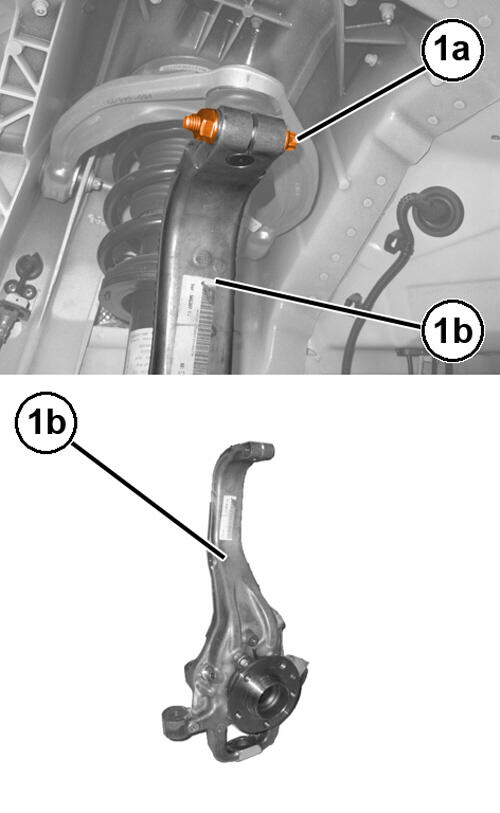

Remove and DISCARD the upper ball joint pinch bolt (1a), and separate the upper ball joint from the knuckle.
Remove the knuckle (1b) from the vehicle.
If necessary remove the hub and bearing from the knuckle.
