Removal And Installation: Installation
NOTE:
Installation process is the same for both sides of the vehicle.
- Position the stabilizer bar link in position on the vehicle.

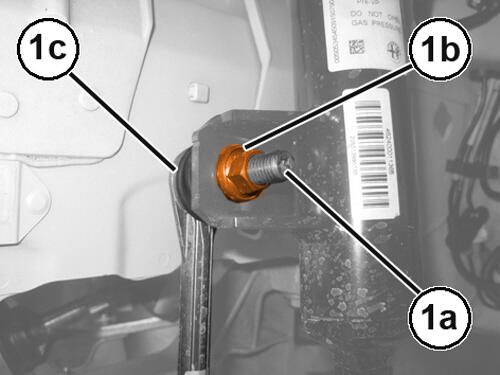

- Holding the stabilizer bar link stud stationary (1a) install a NEW
stabilizer bar link to stabilizer bar mounting nut (1b) and tighten to the proper specification. Refer to FRONT, TECHNICAL SPECIFICATIONS .

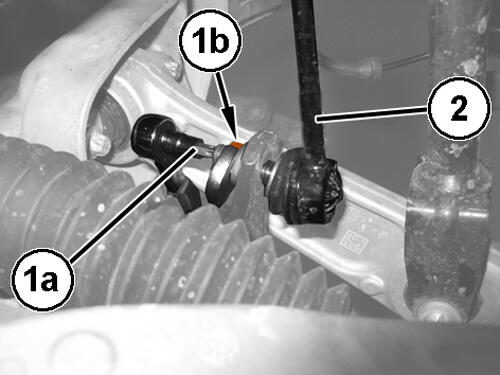

- Holding the stabilizer bar link stud (1a) stationary install a NEW stabilizer bar link to strut assembly mounting nut (1b) and tighten to the proper specification. Refer to FRONT, TECHNICAL SPECIFICATIONS .
- Install the tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .
- Remove the supports and lower the vehicle.
