Sensor-Seat Belt-Buckle Load-Driver (Standard) Connector End View (D3247A)

Harness-Family: Body

Color: GREEN

Gender: FEMALE

Part Number: 1/13591/93

Part Description: Not Available

Connector No: D3247A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

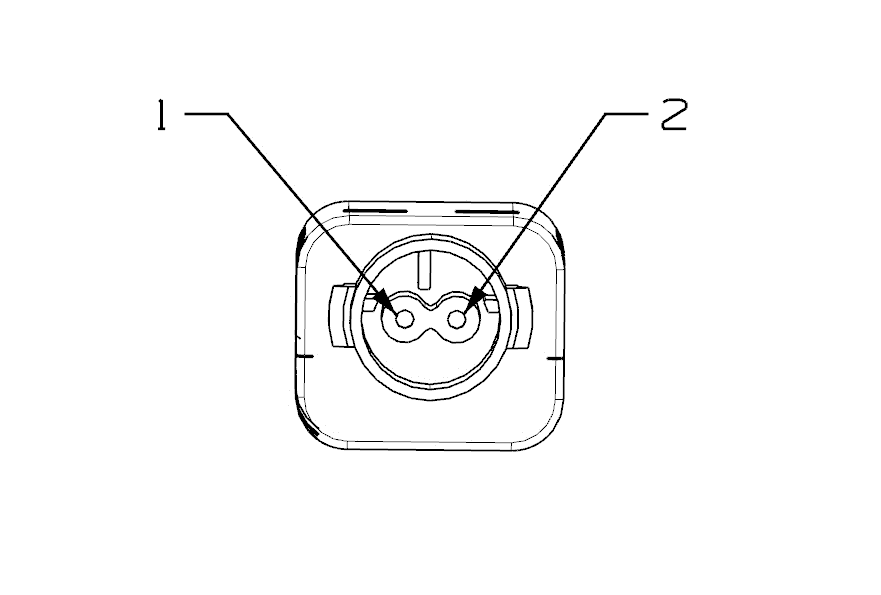

Fig 1: Sensor-Seat Belt-Buckle Load-Driver Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Sensor-Seat Belt-Buckle Load-Driver Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

R57

VT/OG

0.5

DRIVER SEAT BELT BUCKLE SWITCH SENSE

N/A

R59

GN/WH

0.5

DRIVER SEAT BELT BUCKLE SWITCH GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
