Removal And Installation: Installation
To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbags, airbag curtains, knee blocker, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect the Intelligent Battery Sensor (IBS)/negative battery cable assembly from the negative battery post, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.
To avoid serious or fatal injury during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the Mopar® Parts Catalog. Failure to follow these instructions may result in possible serious or fatal injury.
The following procedure is for replacement of an ineffective or damaged seat belt anchor tensioner unit. The front seat belt has an anchor buckle secured to a seat belt tensioner. If the front seat belt anchor tensioner is ineffective or damaged, but the tensioner is not deployed, review the recommended procedures for Handling Non-Deployed Supplemental Restraints. Refer to STANDARD PROCEDURE . If the seat belt anchor tensioner has been deployed, review the recommended procedures for Service After A Supplemental Restraint Deployment before removing the unit from the vehicle. Refer to STANDARD PROCEDURE .

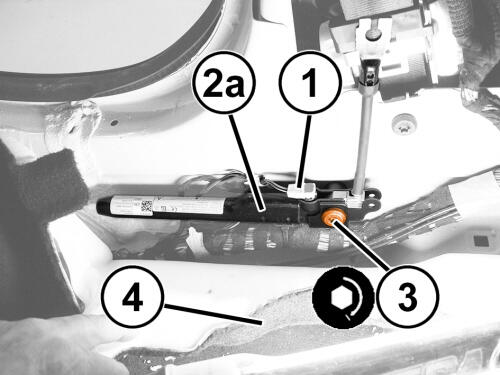

- Pull the carpet (4) away from the B-pillar and position the anchor tensioner unit (2a) into the vehicle.
- Install and tighten the screw (3) that secures the anchor tensioner unit to the bracket at the base of the B-pillar. Tighten the screw to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
- Connect the body wire harness connector (1) to the anchor buckle tensioner.
- Move the carpet (4) to its original position.
- Install the lower trim onto the B-pillar. Refer to PANEL, B-PILLAR TRIM, LOWER, REMOVAL AND INSTALLATION .
- Engage the front seat belt anchor latch onto the anchor tensioner cable.
- Do not connect the negative battery cable at this time. The Supplemental Restraint System (SRS) Verification Test procedure should be performed following service of any SRS component. Refer to STANDARD PROCEDURE .
