Removal And Installation: Left: Removal
WARNING:
To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbags, airbag curtains, knee blocker, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect the Intelligent Battery Sensor (IBS)/negative battery cable assembly from the negative battery post, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.
- Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
- Remove the evaporator temperature sensor. Refer to SENSOR, EVAPORATOR TEMPERATURE, REMOVAL AND INSTALLATION .
- Remove the left front floor air outlet. Refer to OUTLET, AIR, REMOVAL AND INSTALLATION .
- Remove the steering column shroud. Refer to SHROUD, STEERING COLUMN, REMOVAL AND INSTALLATION
.
- Remove the screws (1) securing the actuator cover (2) to the HVAC housing.
- Disengage the tabs (1) and remove the cover (2) from the HVAC housing.

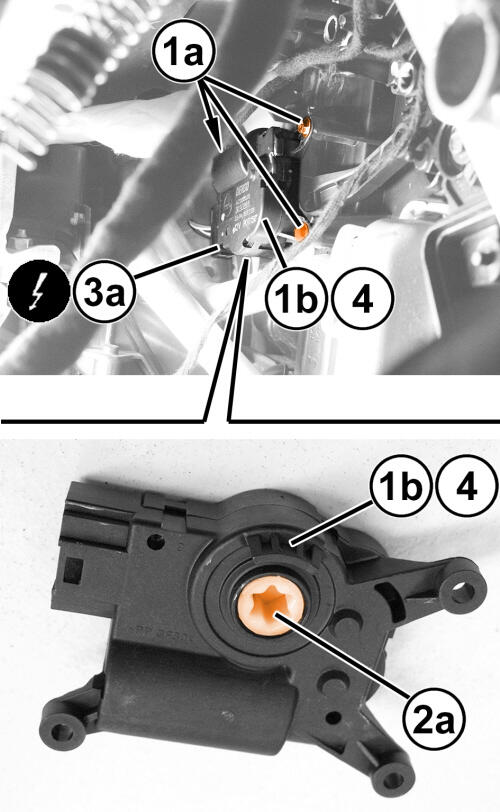

- Remove the three actuator to HVAC housing screws (1a).
- Disconnect the actuator wire harness connector (3a).
- Remove the actuator (1b).
