Removal And Installation: Installation

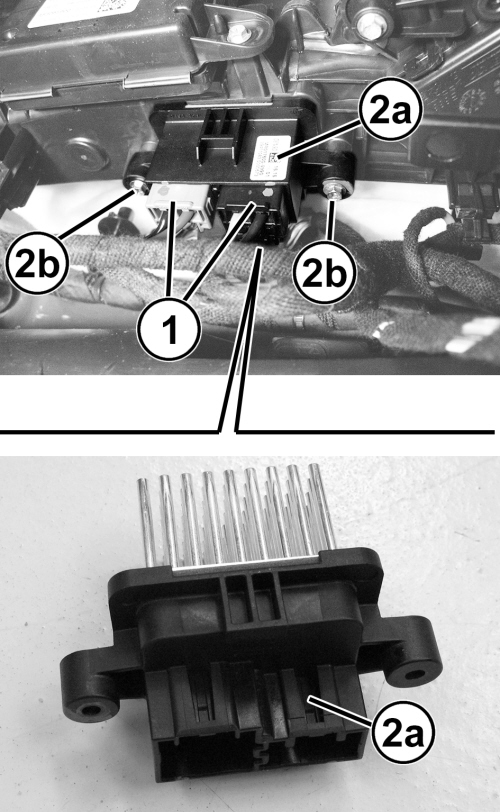

GC0198944Courtesy of CHRYSLER GROUP, LLC
  1. Position the blower motor module (2a) into the HVAC housing and securely tighten the screws (2b).
  2. Connect the blower motor module wire harness connectors (1).
  3. Install the right front floor air outlet. Refer to OUTLET, AIR, REMOVAL AND INSTALLATION .
  4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
