Removal And Installation: Installation

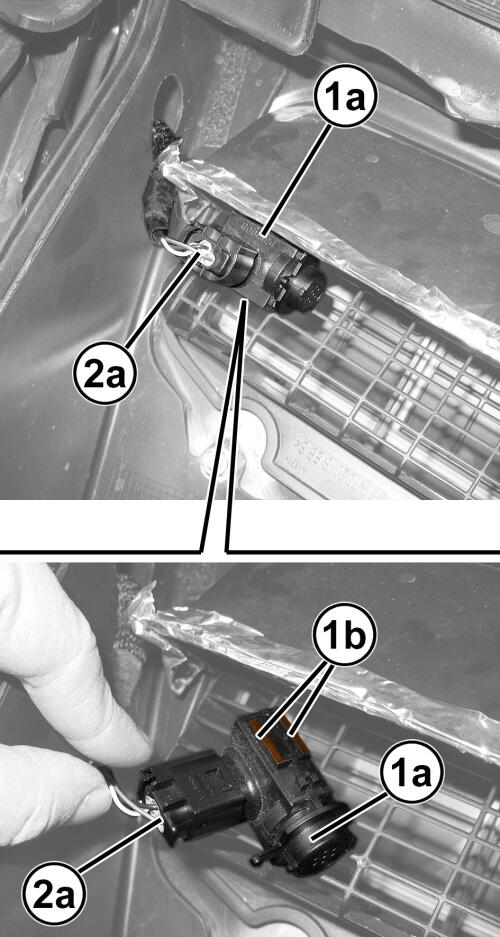

GC0197460Courtesy of CHRYSLER GROUP, LLC
  1. Position the air quality sensor (1a) and engage its slides (1b) into position.
  2. Connect the air quality sensor wire harness connector (2a).
  3. Install the cowl panel cover. Refer to COVER, COWL PANEL, REMOVAL AND INSTALLATION .
  4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
