Removal And Installation: Removal
WARNING:
Disable the airbag system before attempting any steering wheel, steering column, or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to take the proper precautions may result in accidental airbag deployment and possible serious or fatal injury.
WARNING:
Review the warnings and cautions for this system before performing the procedure. Failure to follow these instructions may result in serious or fatal injury.
- Remove the left silencer panel. Refer to PANEL, SILENCER, REMOVAL AND INSTALLATION .
- Remove the drivers knee blocker air bag. Refer to AIR BAG, KNEE BLOCKER, REMOVAL AND INSTALLATION
.

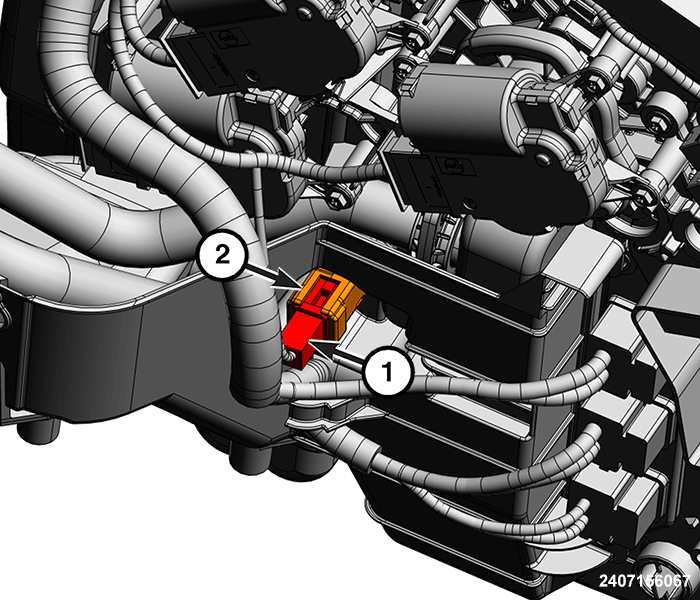

- Remove the wire harness connector (1) from the evaporator temperature sensor (2).

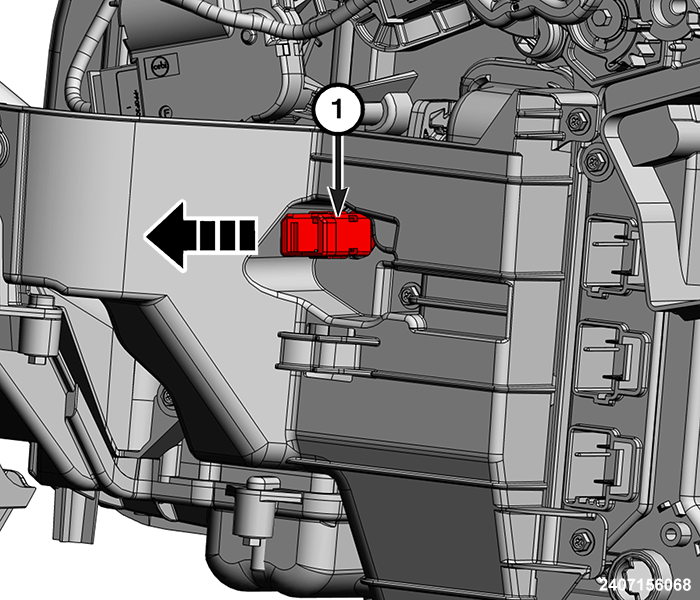

- Remove the evaporator temperature sensor (1) from the HVAC housing.
