Removal And Installation: Installation

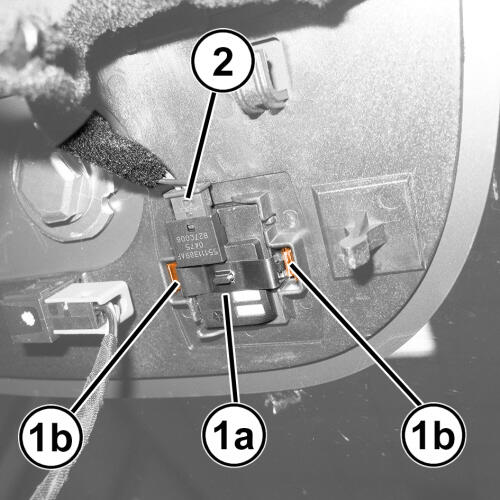

GC0194983Courtesy of CHRYSLER GROUP, LLC
  1. Install the humidity sensor (1a) and engage the retainers (1b).
  2. Connect the humidity sensor wire harness connector (2).
  3. Install the rearview mirror. Refer to MIRROR, REARVIEW, REMOVAL AND INSTALLATION .
  4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
