Air Outlet Temperature Sensor - Upper Left: Installation

Courtesy of CHRYSLER GROUP, LLC

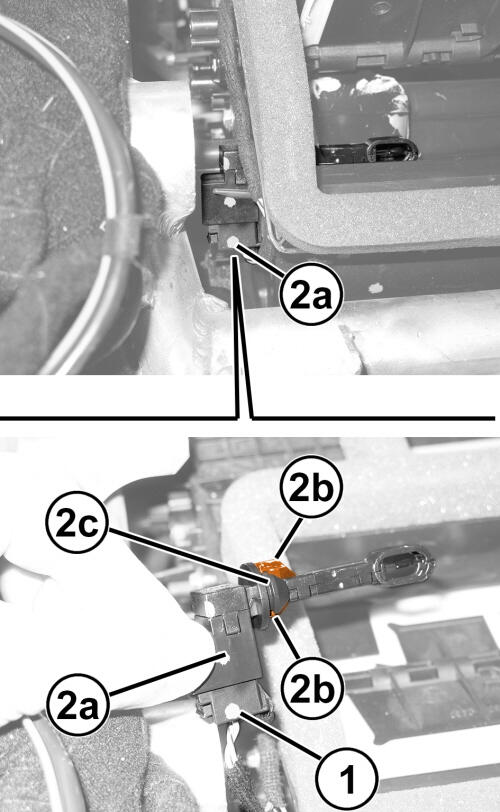

1. Install the temperature sensor (2a) into the HVAC housing, and engage the retainers (2c).
2. Connect the temperature sensor wire harness connector (1).
3. Install the instrument panel cover. Refer to COVER, INSTRUMENT PANEL, REMOVAL AND INSTALLATION .
4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
