Removal And Installation: Removal

WARNING:

To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbags, airbag curtains, knee blocker, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect the Intelligent Battery Sensor (IBS)/negative battery cable assembly from the negative battery post, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the clockspring. Refer to CLOCKSPRING, REMOVAL AND INSTALLATION .

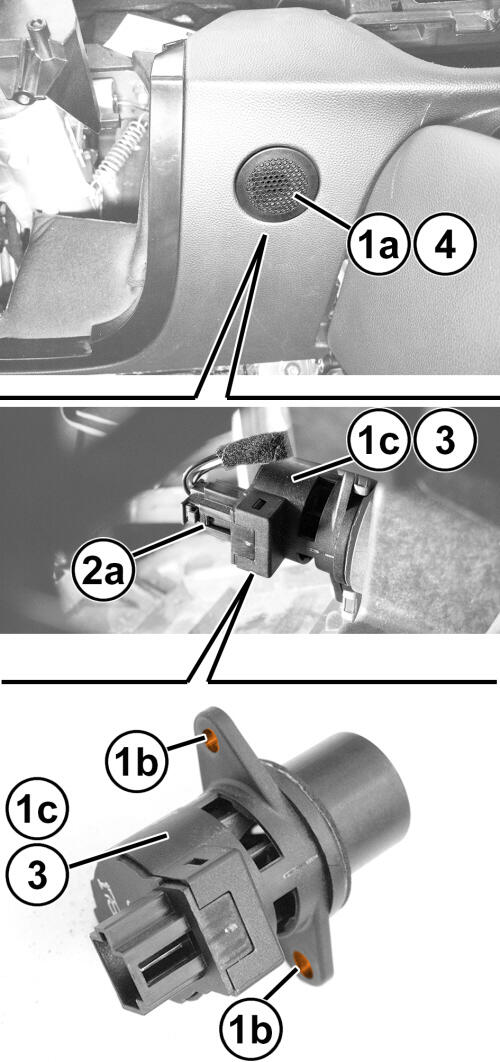

    GC0198581Courtesy of CHRYSLER GROUP, LLC
  3. Behind the grille (1a), remove the humidity sensor screws and remove the humidity sensor (1c).
  4. Disconnect the humidity sensor (1c) wire harness connector (2a).
  5. Remove the humidity sensor from the vehicle.
