Removal And Installation: Installation

NOTE:

Take the proper precautions to protect the face of the instrument panel cover from cosmetic damage while performing this procedure.

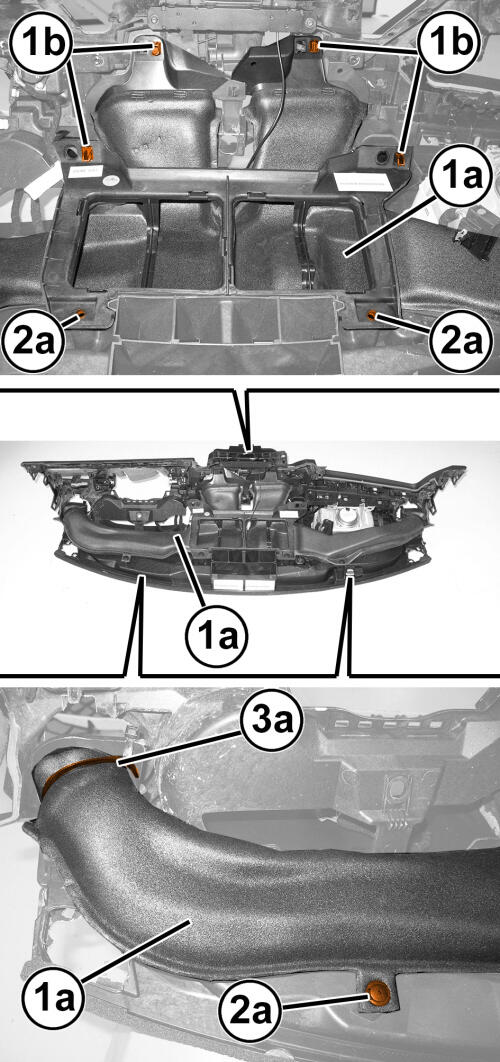

GC0198576Courtesy of CHRYSLER GROUP, LLC
  1. Install the instrument panel duct assembly (1a) and attach the retainers (1b).
  2. Install the retaining pins (2a).

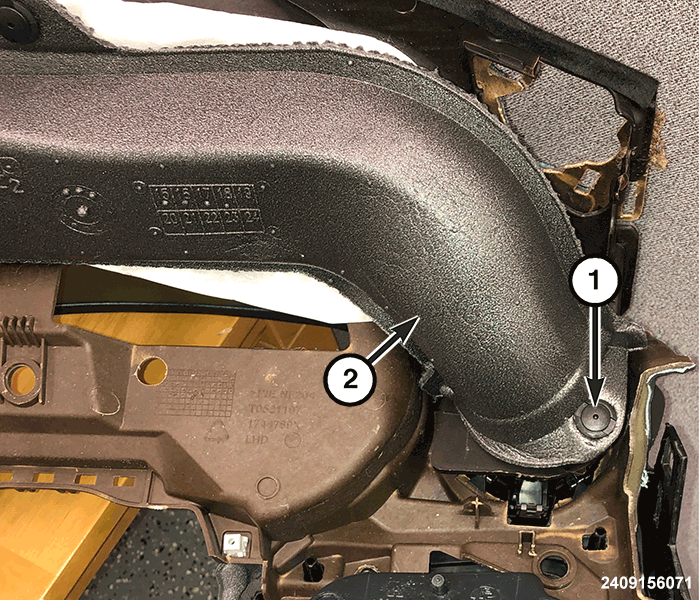

    GC0198739Courtesy of CHRYSLER GROUP, LLC
  3. Install the retainer securing the instrument panel duct assembly (2) to the outlet.
  4. Install the instrument panel cover. Refer to COVER, INSTRUMENT PANEL, REMOVAL AND INSTALLATION .
