Air Outlets - Center Console: Installation

GC0197733Courtesy of CHRYSLER GROUP, LLC
  1. If removed, check that the trim is not damaged.

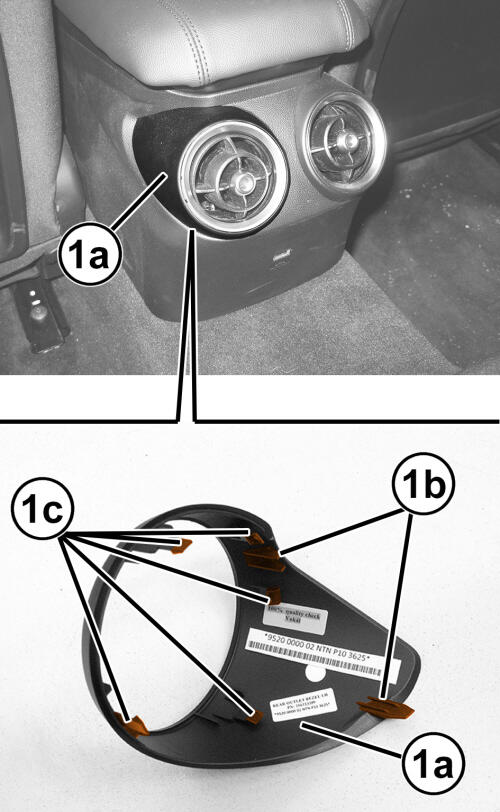

  2. If removed, install the dashboard (1a) and engage the alignment tabs (1b) and the internal retainers (1c).
    NOTE:

    Take the proper precautions to protect the instrument panel from cosmetic damage.

    GC0198206Courtesy of CHRYSLER GROUP, LLC

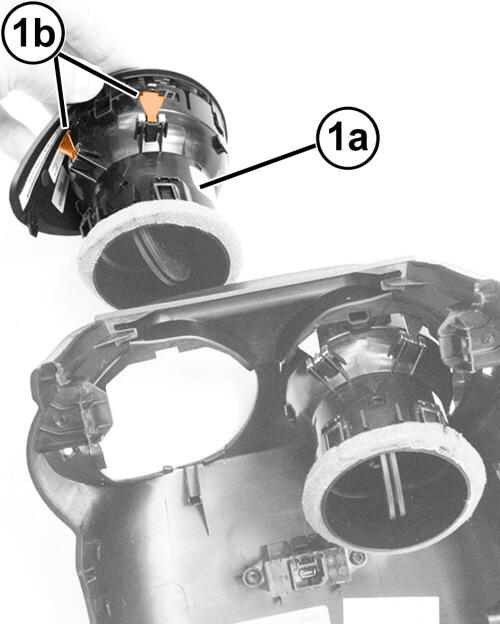

  3. Position the air outlet (1a) to the floor console rear cover and carefully press the air outlet into place. Be certain all retaining tabs (1b) are engaged with the cover.
    GC0198533Courtesy of CHRYSLER GROUP, LLC
  4. Connect the USB port wiring harness connector (1).
  5. Install the floor console rear cover (2a) onto the center console. Be certain all retaining tabs (2b) are engaged with the center console.
  6. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
