Removal And Installation: 2.0L: Removal

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Recover the refrigerant from the refrigerant system. Refer to PLUMBING, STANDARD PROCEDURE .
  3. Remove the front bumper reinforcement. Refer to REINFORCEMENT, BUMPER, FRONT, REMOVAL AND INSTALLATION .
  4. Remove the headlamp mounting crossmember. Refer to CROSSMEMBER, HEADLAMP MOUNTING, REMOVAL AND INSTALLATION .
  5. Remove the transmission cooler. Refer to COOLER, TRANSMISSION OIL, REMOVAL AND INSTALLATION .
    GC0195158Courtesy of CHRYSLER GROUP, LLC

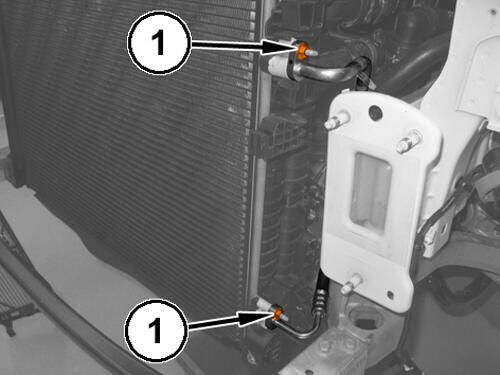

  6. Remove the A/C discharge and liquid line nuts (1) and disconnect the lines from the condenser. Remove and discard the seal washers
  7. Install plugs in, or tape over the opened refrigerant line fittings and condenser ports.
    GC0195412Courtesy of CHRYSLER GROUP, LLC
  8. Remove the condenser (1b) by releasing it from the retainers (1a).
