Description And Operation: Description

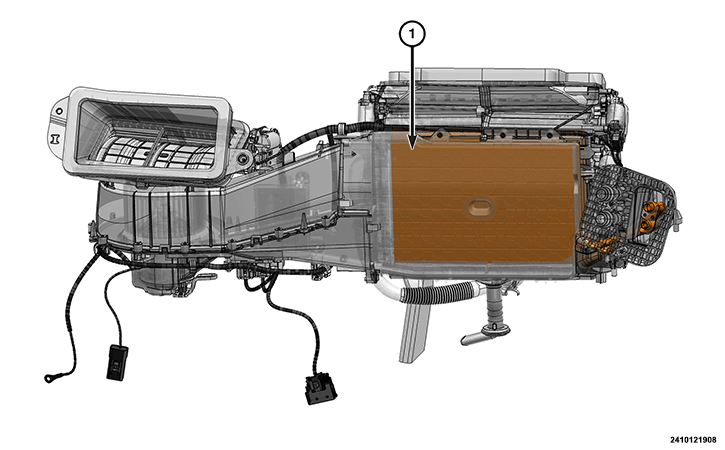

The A/C evaporator (1) for the Heating, Ventilation and Air Conditioning (HVAC) system is mounted in the HVAC housing, which is located behind the instrument panel. The A/C evaporator and its insulator are positioned within the HVAC housing so that all air entering the housing must pass over the evaporator fins before it is distributed through the HVAC system ducts and outlets.
The A/C evaporator can only be serviced by removing and disassembling the HVAC housing assembly.
