Removal And Installation: 2.0L: Removal

WARNING:

Review the safety precautions and warnings in this article before performing this procedure. Failure to follow these instructions may result in serious or fatal injury.

  1. Recover the refrigerant from the refrigerant system. Refer to PLUMBING, STANDARD PROCEDURE .
  2. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  3. Remove the left front headlamp unit. Refer to UNIT, FRONT LAMP, REMOVAL AND INSTALLATION .
    GC0197722Courtesy of CHRYSLER GROUP, LLC

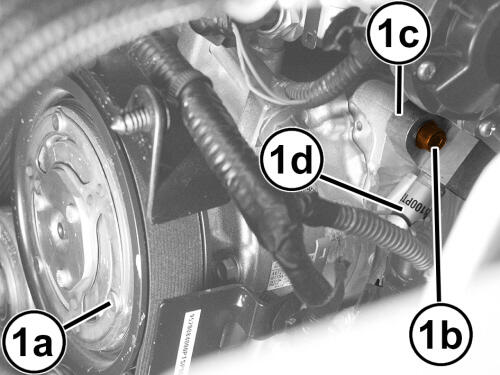

  4. Remove the bolt (1b) that secures the A/C discharge line (1c) to the A/C compressor (1a).
  5. Disconnect the A/C discharge line (1c) from the A/C compressor. Remove and discard the O-ring seal.
  6. Install plugs in, or tape over the open refrigerant line fittings, the condenser and compressor ports.
    GC0198394Courtesy of CHRYSLER GROUP, LLC

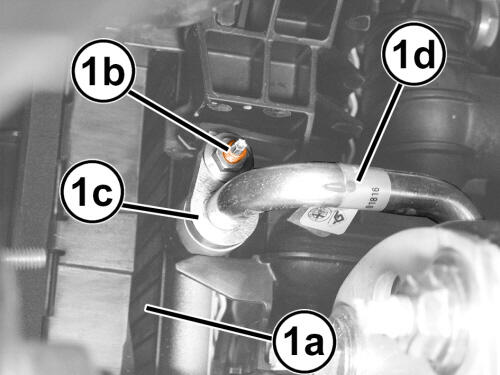

  7. Remove the nut (1b) for the A/C discharge line (1c) to the A/C condenser (1a).
  8. Disconnect the A/C discharge line (1c) from the A/C condenser.Remove and discard the O-ring seals.
  9. Install plugs in, or tape over the open refrigerant line fittings, the condenser and compressor ports.
    GC0198354Courtesy of CHRYSLER GROUP, LLC

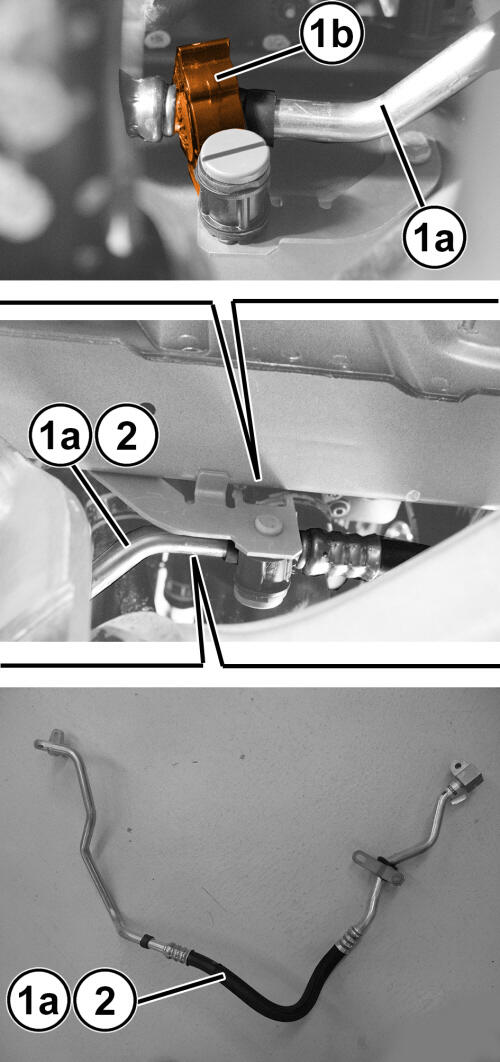

  10. Release the retaining band (1b) on the left strut tower and remove the A/C discharge line (1a) from the vehicle.
