Removal And Installation: 2.9L: Installation

CAUTION:

Be certain to adjust the refrigerant oil level when servicing the A/C refrigerant system. Failure to properly adjust the refrigerant oil level will prevent the A/C system from operating as designed and can cause serious A/C compressor damage.

NOTE:

When replacing multiple A/C system components, see the Refrigerant Oil Capacities chart to determine how much oil should be added to the refrigerant system. Refer to OIL, REFRIGERANT, STANDARD PROCEDURE .

NOTE:

Replacement of the refrigerant line O-ring seals and gaskets is required anytime a refrigerant line is disconnected. Failure to replace the rubber O-ring seals and metal gaskets may result in a refrigerant system leak.

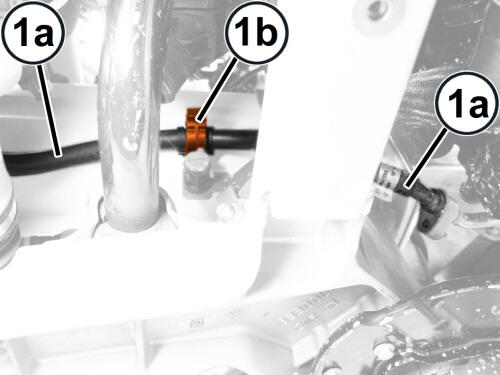

GC0197605Courtesy of CHRYSLER GROUP, LLC
  1. Position the A/C discharge line (1a) into the vehicle and install the retaining band (1b) on the left strut tower.

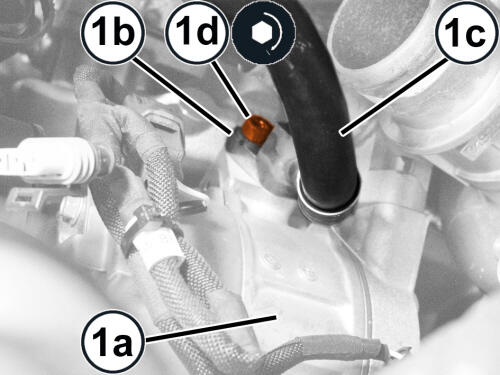

    GC0198510Courtesy of CHRYSLER GROUP, LLC
  2. Remove the tape or plugs from the opened refrigerant line fittings and the compressor and condenser ports.
    NOTE:

    Lubricate NEW  rubber O-ring seals with clean refrigerant oil and install them and new gaskets onto the discharge line fittings. Use only the specified O-rings as they are made of a special material for the system. Use only refrigerant oil of the type recommended for the A/C compressor in the vehicle.

  3. Position the A/C discharge line (1c) onto the A/C compressor (1a).
  4. Install the bolt (1d) that secures the A/C discharge line (1c) to the A/C compressor and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS . Install a NEW O-ring seal.

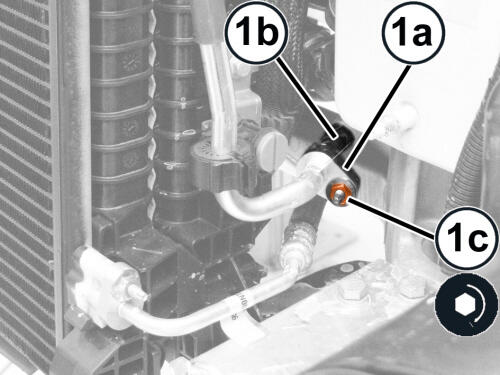

    GC0197960Courtesy of CHRYSLER GROUP, LLC
  5. Remove the tape or plugs from the opened refrigerant line fittings and the compressor and condenser ports.
    NOTE:

    Lubricate NEW  rubber O-ring seals with clean refrigerant oil and install them and new gaskets onto the discharge line fittings. Use only the specified O-rings as they are made of a special material for the system. Use only refrigerant oil of the type recommended for the A/C compressor in the vehicle.

  6. Position the A/C discharge line (1b) onto the A/C discharge line jumper (1a).
  7. Install the nut (1c) that secures the A/C discharge line (1b) to the A/C discharge line jumper (1a) and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS . Install a NEW O-ring seal.
  8. Install the front fascia. Refer to FASCIA, FRONT, REMOVAL AND INSTALLATION .
  9. Install the turbocharger air inlet tube connector. Refer to COOLER AND HOSES, CHARGE AIR, REMOVAL AND INSTALLATION .
  10. Install the front spoiler actuator.
  11. Install the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
  12. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
  13. Adjust the refrigerant oil level. Refer to OIL, REFRIGERANT, STANDARD PROCEDURE .
  14. Charge the refrigerant system. Refer to PLUMBING, STANDARD PROCEDURE .
