Removal And Installation: 2.0L: Installation

CAUTION:

Be certain to adjust the refrigerant oil level when servicing the A/C refrigerant system. Failure to properly adjust the refrigerant oil level will prevent the A/C system from operating as designed and can cause serious A/C compressor damage.

NOTE:

When replacing multiple A/C system components, see the Refrigerant Oil Capacities chart to determine how much oil should be added to the refrigerant system. Refer to OIL, REFRIGERANT, STANDARD PROCEDURE .

NOTE:

Replacement of the refrigerant line O-ring seals and gaskets is required anytime a refrigerant line is disconnected. Failure to replace the rubber O-ring seals and metal gaskets may result in a refrigerant system leak.

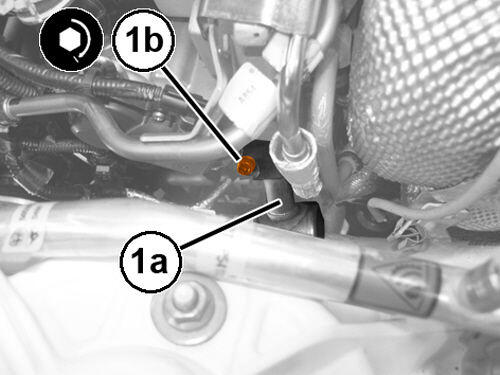

GC0197699Courtesy of CHRYSLER GROUP, LLC
  1. Remove the tape or plugs from the opened refrigerant line fittings.
    NOTE:

    Lubricate NEW  rubber O-ring seals with clean refrigerant oil and install them and new gaskets onto the discharge line fittings. Use only the specified O-rings as they are made of a special material for the system. Use only refrigerant oil of the type recommended for the A/C compressor in the vehicle.

  2. Install the A/C suction jumper line (1a) to the A/C compressor. Install a NEW O-ring seal.
  3. Install the bolt (1a) that secures the A/C suction jumper line (1b) to the A/C compressor and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .

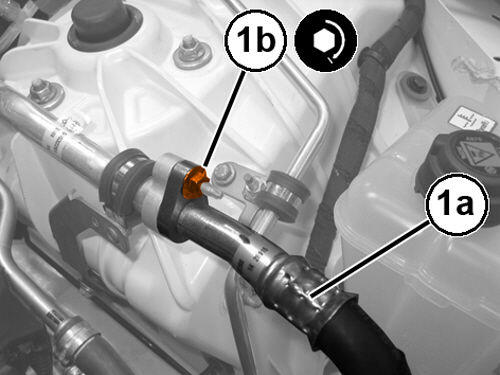

    GC0198279Courtesy of CHRYSLER GROUP, LLC
  4. Remove the tape or plugs from the opened refrigerant line fittings.
    NOTE:

    Lubricate NEW  rubber O-ring seals with clean refrigerant oil and install them and new gaskets onto the discharge line fittings. Use only the specified O-rings as they are made of a special material for the system. Use only refrigerant oil of the type recommended for the A/C compressor in the vehicle.

  5. Install the A/C suction jumper line (1a) to the A/C suction line. Install a NEW O-ring seal.
  6. Install the nut (1b) that secures the A/C suction jumper line (1a) to the A/C suction line and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
  7. Install the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
  8. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
  9. Adjust the refrigerant oil level. Refer to OIL, REFRIGERANT, STANDARD PROCEDURE .
  10. Charge the refrigerant system. Refer to PLUMBING, STANDARD PROCEDURE .
