Removal And Installation: Installation

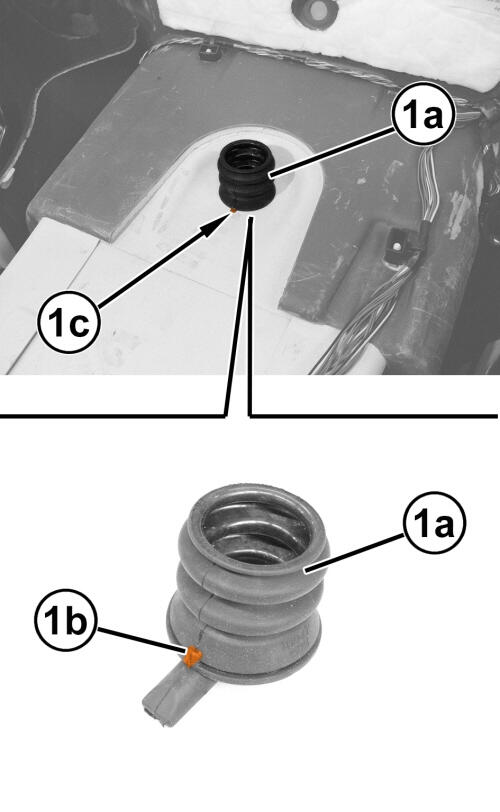

GC0198340Courtesy of CHRYSLER GROUP, LLC
  1. Connect the condensation drain tube (1a) by engaging the retainer (1b) in the casing (1c).
  2. Install the HVAC housing. Refer to HOUSING, HVAC, REMOVAL AND INSTALLATION .
