Tire Pressure Sensor: Installation

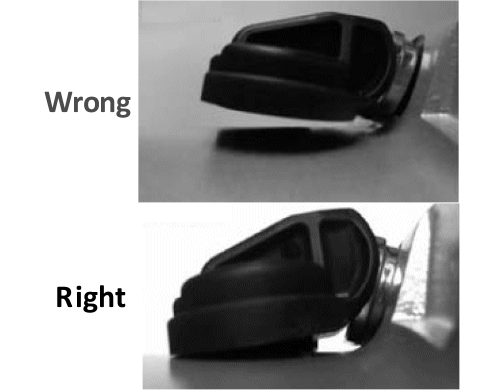

- Fit the sensor in its housing, checking that it is positioned correctly as shown in Fig 1.
- Check that there is no contact between the front part of the sensor and the surface of the rim around the valve opening.
- Tighten the sensor fixing nut
- When the fitting tire back onto the wheel, the initial sensor position must be at 6 o'clock in relation to the tire tool's hydraulic arm.NOTE: The distance between the blade of the hydraulic arm and the sensor must always be greater than 80 mm.
- Inflate the tire to the recommended pressure.
- Drive the vehicle for up to 20 minutes above 15 mph (24 km/h) in order for the TPMS to register any new TPMS sensors.
